1972 GROVE TM800
cranes liftingGROVEAvailable
$48,000
Located in Indiana
~25 miles from Indianapolis
Year
1972
Hours
9,996
Horsepower
178 HP
Operating Weight
115,043 lbs
Item # PE-40689Stock # JWS08k1Z767573
About this TM800

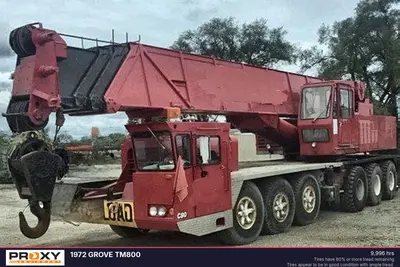

1972 Grove Model TM800T 80 Ton Hydraulic Truck Crane, 114' Main Boom, 27' Jib, 12x6 Carrier, Low Profile Cab, Turn Radius 53', Outriggers 23' Centerline to Centerline, Retract to 11', Tire all 80% Plus.
- 80-ton (72.5 metric ton) lifting capacity
- Trapezoidal boom for superior strength and reach
- Hydraulic double-box telescoping beam outriggers for stability
- Two-speed hoist for efficient lifting operations
- 360° continuous swing for versatile positioning
- Truck-mounted carrier for easy job-to-job mobility
Additional Notes
- Tires have 80% or more tread remaining
Specifications
Horsepower178 HP
Operating Weight115,043 lbs
EngineCummins (Carrier), GM (Superstructure) NTF-365 (Carrier), 6V-53N (Superstructure)
Fuel Capacity78 gal
Performance
Max Reach114 ft
Lift Capacity160,000 lbs
Hydraulic Flow350 GPM
Configuration
TransmissionMain: fuller t905-b (5 forward, 1 reverse), auxiliary: spicer 8341e (4 speeds)
Cab TypeAll steel, fully enclosed, laminated safety windows, sliding right side window, sliding door, hinged skylight, adjustable operator's seat, full instrumentation and controls, heater
