1980 AMERICAN 5299
cranes liftingAMERICANAvailable
$39,900
Located in Texas
Year
1980
Operating Weight
104,200 lbs
Item # PE-46270Stock # ALA0ELMU241074
About this 5299

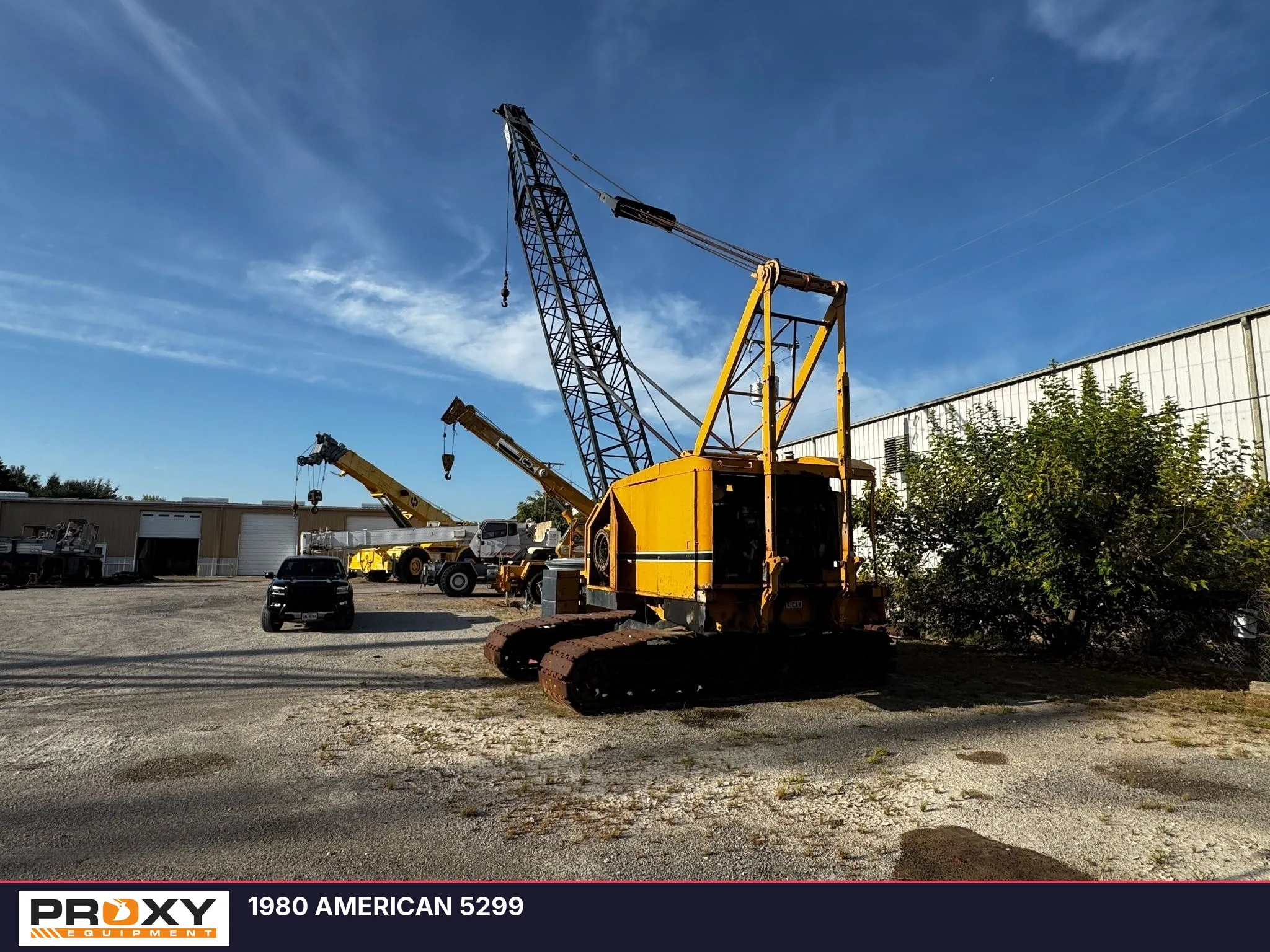

The American 5299 is a 50 ton heavy-duty crawler crane known for its robust lattice boom and high lifting capacity. This 1980 model is equipped with a standard 46S angle chord lattice boom and features a 34,500 lb counterweight for enhanced stability. The crane is designed for demanding lift applications including crane, clamshell, dragline, and magnet service, with a maximum boom length of 150 ft for lifting and a maximum lift capacity of 100,000 lbs.
- 100,000 lb maximum lifting capacity
- 34,500 lb counterweight (S-S configuration)
- 46S angle chord lattice boom (up to 150 ft)
- Hydrostatic swing (0 to 3.75 RPM)
- Crawler ground pressure 8.56 PSI (32" shoes)
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Specifications
Operating Weight104,200 lbs
EmissionsPre-Tier (1980 model, no emissions controls)
Performance
Lift Capacity100,000 lbs
Travel Speed1 mph
Ground Pressure8.56 PSI
Dimensions
Tail Swing146 in
Track Typecrawler
Shoe Width32 in
Additional Specifications
Counterweight34,500 lbs
Rated Capacity50 tons
Boom TypeLattice
