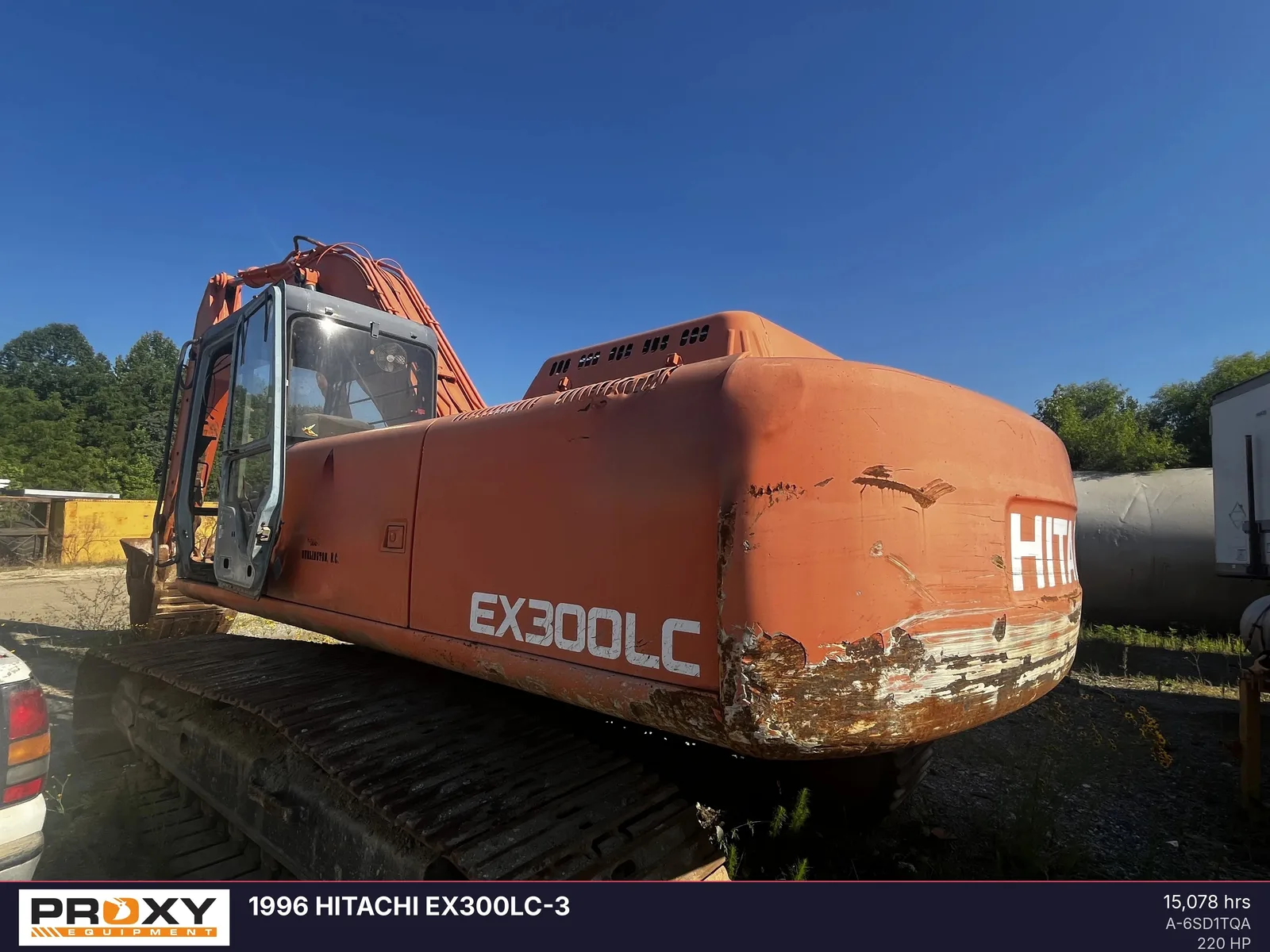

1996 HITACHI EX300LC-3
earth movingHITACHIAvailable
$18,400
Year
1996
Hours
15,078
Horsepower
208 HP
Operating Weight
68,100 lbs
Item # PE-45648Stock # WPZ0IXQS453538
About this EX300LC-3
The Hitachi EX300LC-3 is a 30-ton class hydraulic crawler excavator built for heavy construction, mining, and quarry applications. Powered by an Isuzu A-6SD1TQA turbocharged diesel engine producing 208 net horsepower, this long-carriage (LC) variant offers enhanced stability and wider undercarriage for demanding digging operations. The EX300LC-3 features a 310-liter hydraulic system with two variable displacement piston pumps delivering 144 gpm combined flow at 4,980 psi relief pressure.
- Isuzu A-6SD1TQA 208 HP turbo diesel
- Long carriage (LC) wide undercarriage for stability
- 310L hydraulic system with variable displacement pumps
- 4,980 psi hydraulic relief pressure
- 12 RPM swing speed with smooth control
Specifications
Horsepower208 HP
Operating Weight68,100 lbs
EngineIsuzu A-6SD1TQA
EmissionsTier 0 (pre-emissions)
Fuel Capacity134.8 gal
Performance
Bucket Capacity1.4 cu yd
Max Dig Depth22.4 ft
Max Reach34 ft
Dump Height22.3 ft
Hydraulic Flow144.3 GPM
Travel Speed3.4 mph
Ground Pressure8.7 PSI
Configuration
Cab TypeEnclosed rops/fops
Dimensions
Tail Swing129.9 in
Track Typesteel crawler
Shoe Width31.5 in
