2006 CATERPILLAR 740
truckingCATERPILLARAvailable
$59,950
Located in Alabama
Year
2006
Hours
22,540
Horsepower
453 HP
Operating Weight
72,565 lbs
Item # PE-46251Stock # PCZ1UcZf568961
About this 740

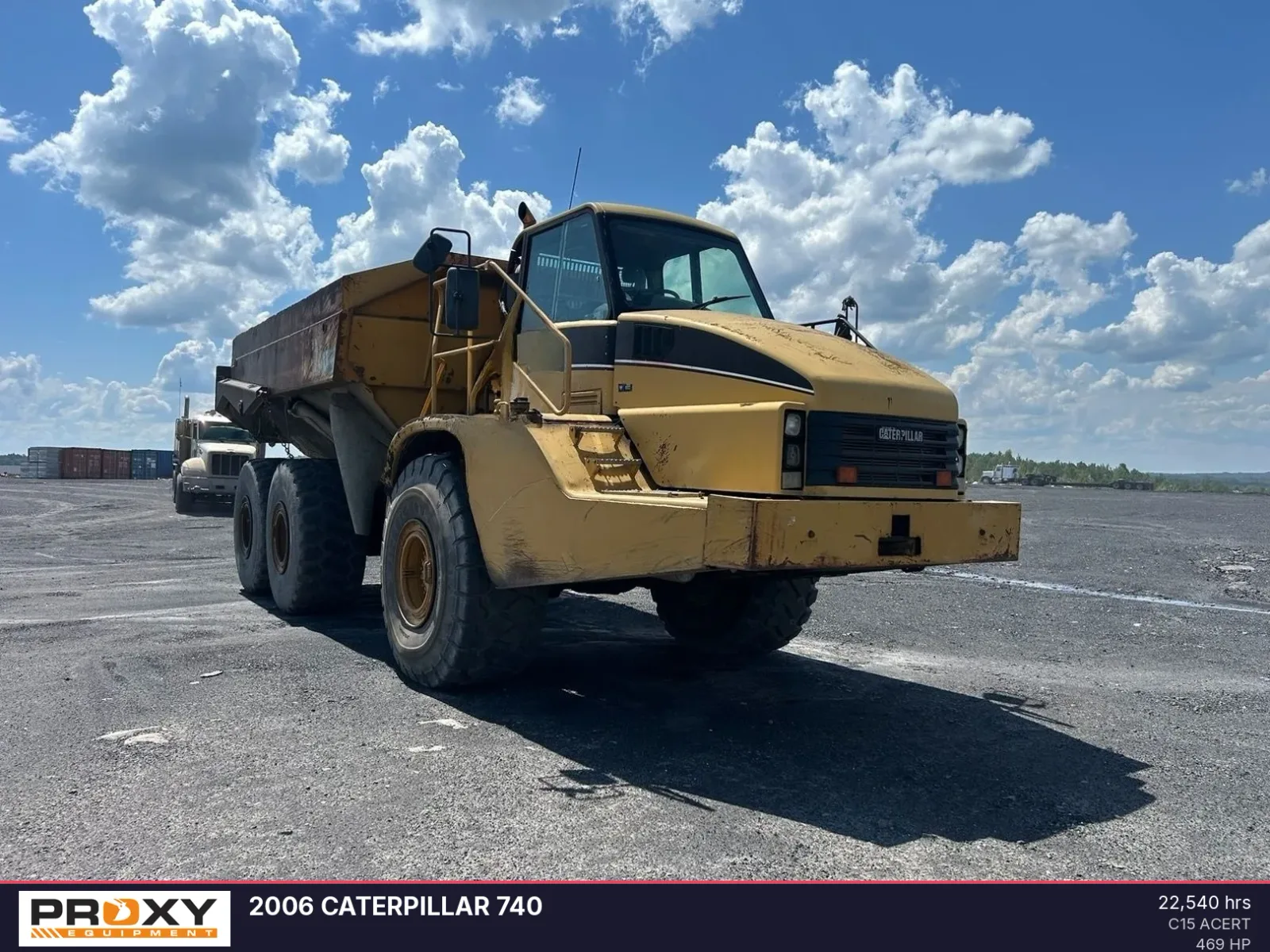

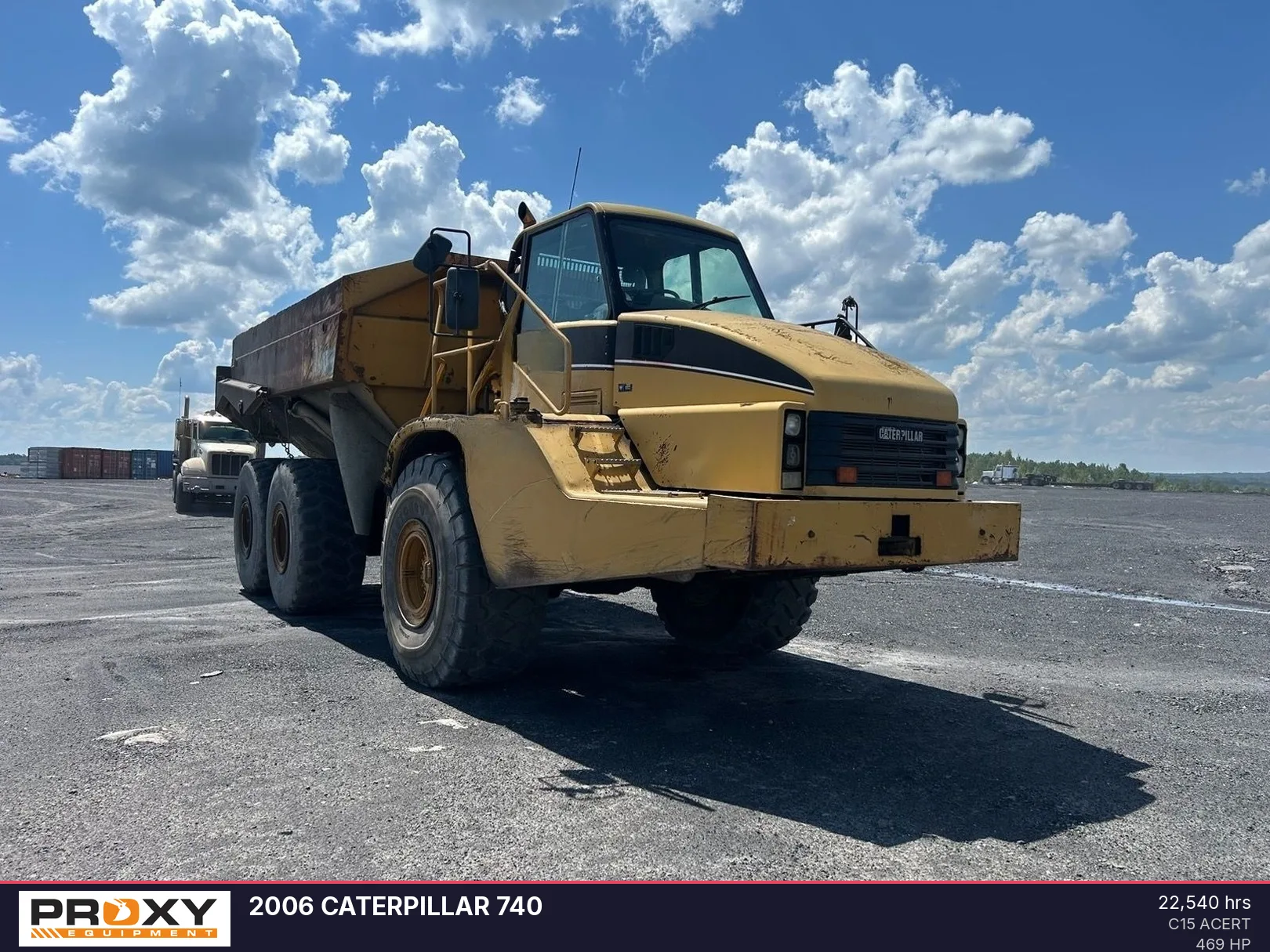

The 2006 Caterpillar 740 6x6 is a three-axle, six-wheel drive articulated dump truck (B1P prefix) with a 40-ton rated payload. It is powered by a Cat C-15 diesel engine producing 453 net horsepower (SAE J1349) paired with a Cat CX38 transmission. The truck features a heaped body capacity of 29.7 yd³ (SAE 2:1) and is equipped with automatic clutched inter- and cross-axle differential locks for improved traction on soft ground.
- Cat C15 ACERT engine, 453 net hp
- 40-ton (36.3 tonne) rated payload
- Three-axle, six-wheel drive
- Automatic inter- and cross-axle differential locks
- Heaped body capacity 29.7 yd³ (SAE 2:1)
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Noted in the Description
- 2006 CATERPILLAR 740
- C15 ACERT
- 469 HP
Specifications
Horsepower453 HP
Operating Weight72,565 lbs
EngineCat C15 ACERT
Fuel Capacity145.3 gal
Configuration
TransmissionCat cx38
Cab TypeRops/fops cab
Axle Configuration6x6
SuspensionThree-point front suspension, oil/nitrogen front cylinders
BrakesEngine compression brake, iso 3450:2011 brakes
Tire Size29.5R25
Trailer Specs
Overall Length36.3 ft
Additional Specifications
SuspensionThree-point front suspension, oil/nitrogen front cylinders
DEF Tank6.5 gal
