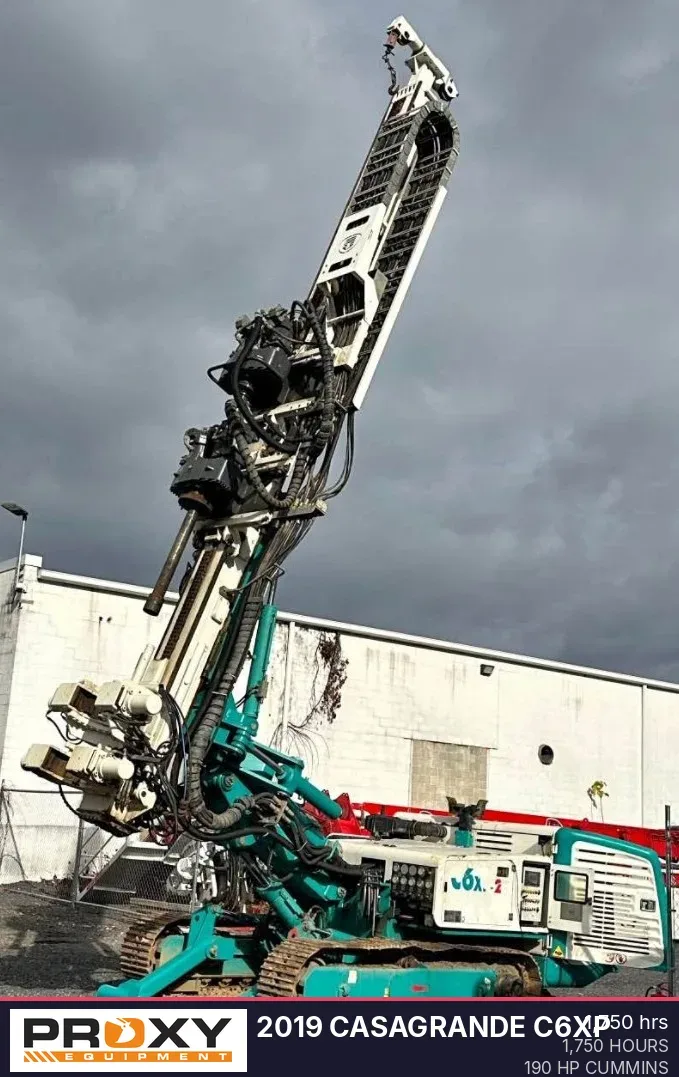

2019 CASAGRANDE C6XP
Year
2019
Hours
1,750
Horsepower
190 HP
Operating Weight
33,070 lbs
About this C6XP
2019 Cassagrande C6XP-2 Hydraulic Crawler Drill Rig. Micropile Drill, Hours: 1,750. Cummins 190 HP B 4.5 turbo-charged diesel engine, Extraction/Crowd Force: 87 kN (w/ 100 kN option) Rotary Head Torque: 15,200 Nm, Rotary Head Stroke: 24', Maximum Drilling Diameter: 10" Maximum Drilling Speed: 360 rpm, Operating Weight: 33,070 lbs, Crawler Width: 7' 4.8", Crawler Pad Width: 400 mm; Crawler Length: 3300 mm, Hydraulic System: Full load sensing hydraulic system, Electrical System: 24 Volt, 140 Ah, Hydraulic Oil Tank Capacity: 138 gal, Fuel Tank Capacity: 68 gal; Clamping: Clamping force of 283 kN for diameters from 30 mm to 305 mm (1.2 to 12 in), Mobility: Equipped with four hydraulic stabilizers and a new joint system for reaching extreme positions, Control System: Remote with 7" Control Interface Color screen. Additional photos and video available upon request. Financing Available.
- 1,750 operating hours
- Cummins 190 HP B 4.5 turbo-charged diesel engine
- 15,200 Nm rotary head torque
- 24' rotary head stroke
- Remote control system with 7" display
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Noted in the Description
- CUMMINS 190 HP
Additional Notes
- REMOTE CONTROL
- 10 INCH DRILLING DIAMETER
Specifications
Performance
Dimensions
About this Model
This 2019 Casagrande C6XP-2 hydraulic crawler drill rig is a specialized micropile drill featuring 1,750 hours of operation. It is powered by a Cummins 190 HP B 4.5 turbo-charged diesel engine and utilizes a full load sensing hydraulic system with a 138-gallon hydraulic oil tank and 68-gallon fuel tank. The unit is equipped with a 24' rotary head stroke, 15,200 Nm of rotary head torque, and a maximum drilling diameter of 10 inches.
General information about the CASAGRANDE C6XP model line. Details for this specific unit are above.
