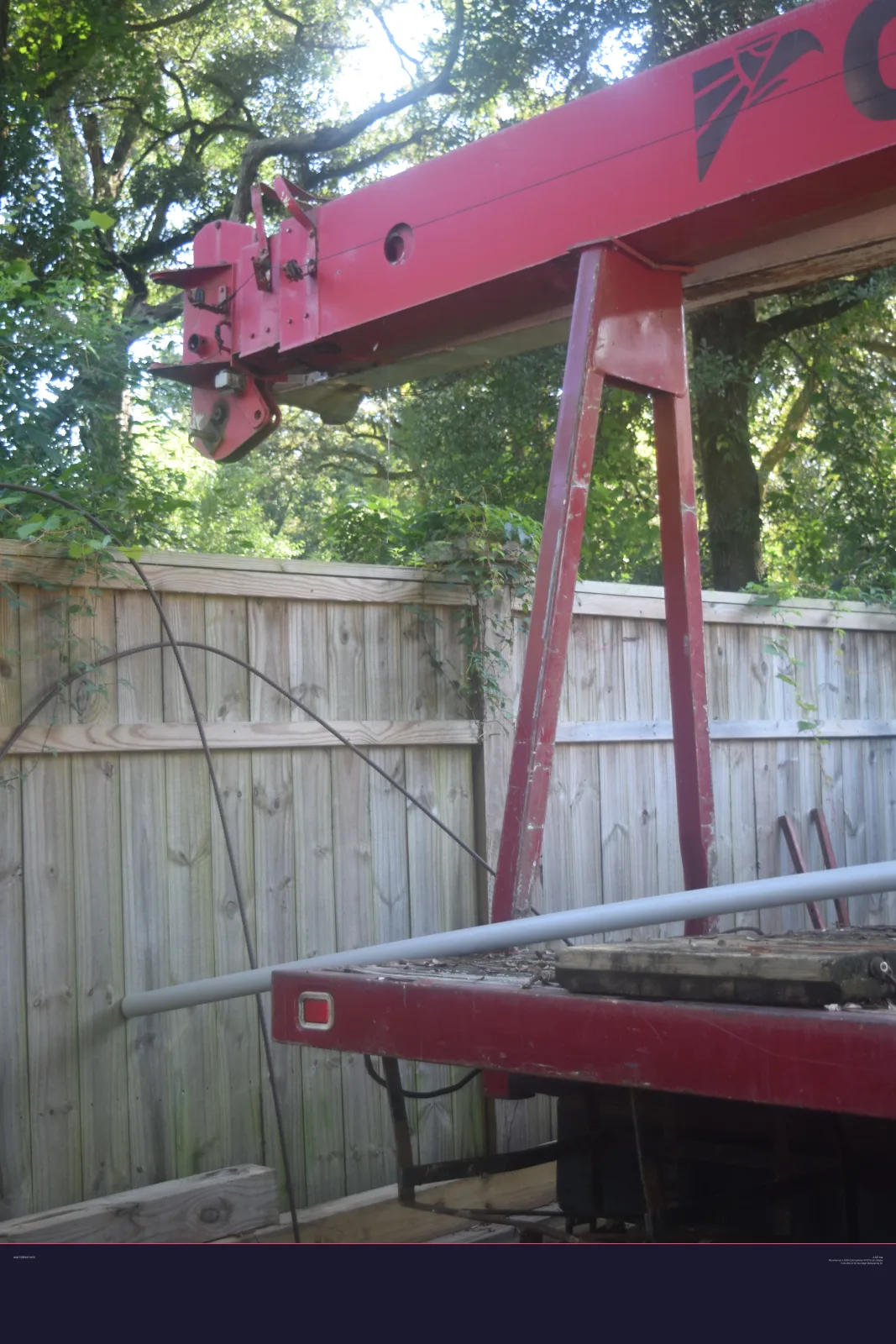

2000 TEREX BT 3470
Year
2000
Hours
3,107
Horsepower
210 HP
About this BT 3470
2000 International 4700 Terex Crane Truck, 7.3L turbocharged diesel engine. 210 hp. ft. 3000 rpm, 425 lb/ft)/1600 rpm. Spicer 5-speed transmission 2000 Terex BT3470 Truck Mounted Crane, 34, 000 lb. maximum lifting capacity, 80’ maximum sheave height and 120’ maximum sheave tip height with 24-40’ jib. 27-70’ three-section full power fully synchronized boom. Exclusive color-coded boom/load charts, optional 24’ one-stage or 24-40’ two-stage telescoping jib. Man baskets/work platforms increase job capacities. Electronic Load Moment Indicator, anti-two-block device standard. The 2-speed planetary winch has 10,500 lb maximum permissible 1 part line, 37,000 Ib. breaking strength, 186 ft/min maximum line speed. Dual control station, direct mechanically controlled hydraulic system. 70-gal capacity hydraulic tank. Bed Length 17 feet and 4 inches. Wheel base 17 feet. Financing Available..
- 34,000 lb maximum lift capacity
- 27-70’ three-section synchronized boom
- Electronic Load Moment Indicator
- 2-speed planetary winch
- Dual control station
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Noted in the Description
- 210 HP TURBO DIESEL
Equipment & Attachments
- 27-70' THREE-SECTION BOOM
- 2-SPEED PLANETARY WINCH
Additional Notes
- 34,000 LB LIFT CAPACITY
- 120' MAX TIP HEIGHT
Specifications
Performance
Configuration
Trailer Specs
About this Model
This 2000 International 4700 is equipped with a Terex BT3470 truck-mounted crane. The crane features a 34,000 lb maximum lifting capacity, a 27-70’ three-section full power fully synchronized boom, and an 80’ maximum sheave height, extending to 120’ with the 24-40’ jib. The truck is powered by a 7.3L turbocharged diesel engine producing 210 hp and 425 lb/ft of torque at 1600 rpm, paired with a Spicer 5-speed transmission. It includes a 2-speed planetary winch with a 10,500 lb maximum permissible 1-part line pull and 37,000 lb breaking strength.
General information about the TEREX BT 3470 model line. Details for this specific unit are above.
