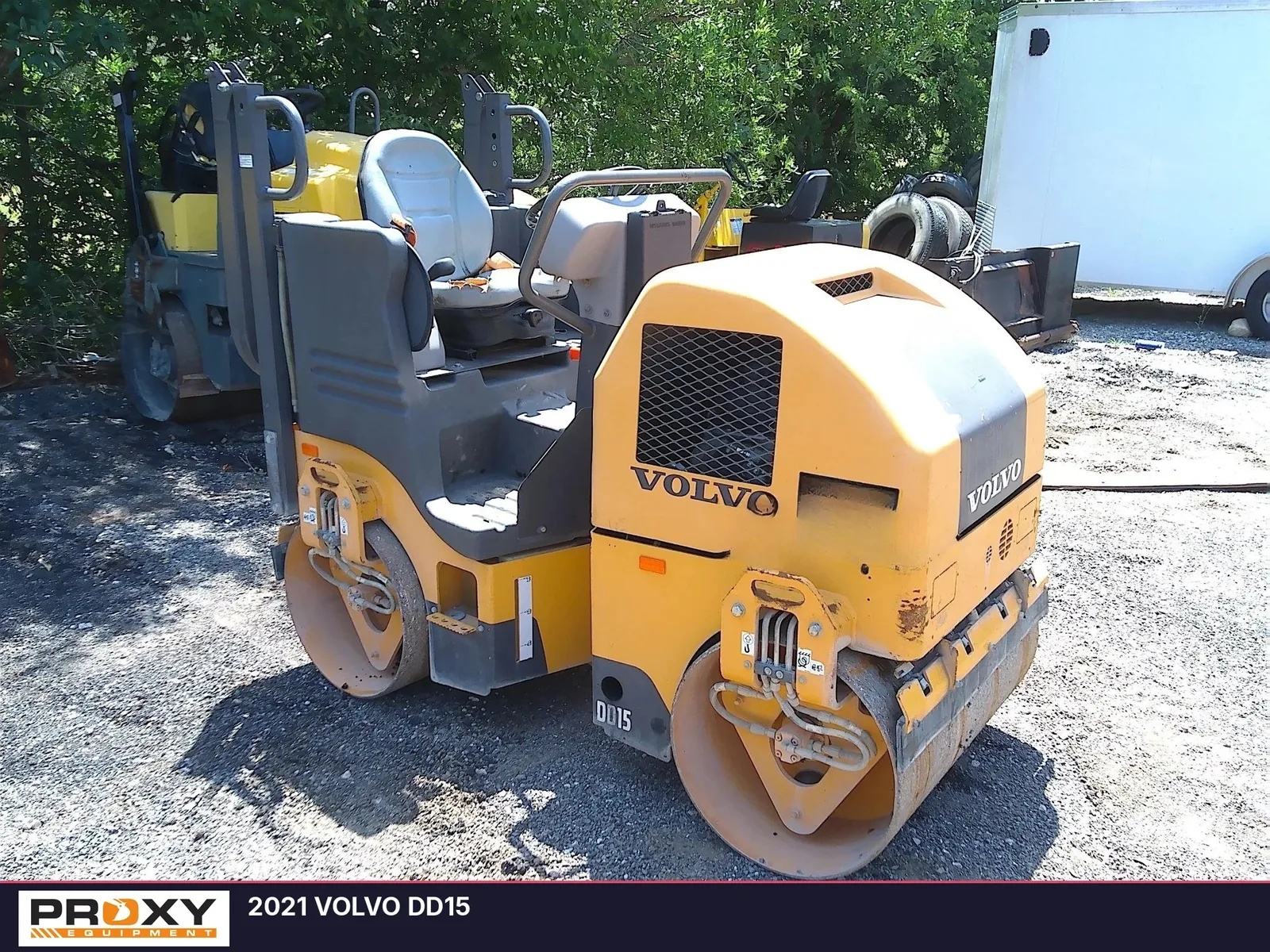

2021 VOLVO DD15
compactionVOLVOAvailable
$19,800
Located in Texas
Year
2021
Horsepower
16 HP
Operating Weight
3,372 lbs
Item # PE-45857Stock # JSA1WNce968406
About this DD15
This compact roller features a 66.7 Hz vibration frequency—the same high frequency found in much larger machines—for better speed and higher productivity. Powered by a Kubota D722-B T4F 3-cylinder diesel engine rated at 12.2 kW (16.4 hp) at 3,000 r/min, with a 900 mm (35.4 in) drum width and operating weight of 1,529 kg (3,372 lbs).
- 66.7 Hz vibration frequency (4,000 vpm)
- Kubota D722-B T4F diesel engine, 16.4 hp
- 900 mm (35.4 in) drum width
- Dual amplitude: 0.37 mm (0.015 in)
- Centrifugal force: 15.6 kN (3,500 lbf)
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Specifications
Horsepower16 HP
Operating Weight3,372 lbs
EngineKubota D722-B T4F
EmissionsTier 4 Final
Fuel Capacity7.8 gal
Additional Specifications
Drum TypeSmooth
Drum Width35.4 in
Drum Diameter22 in
Compaction Width35.4 in
Centrifugal Force3,500 lbf
Amplitude0.015 in
Vibratory / StaticVibratory
A/CNo a/c
