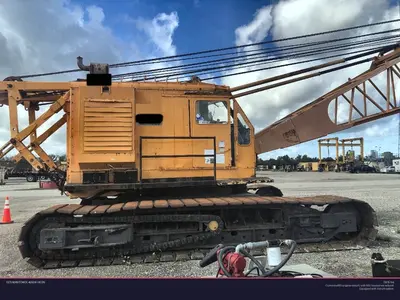

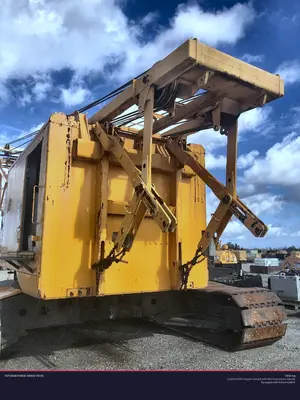

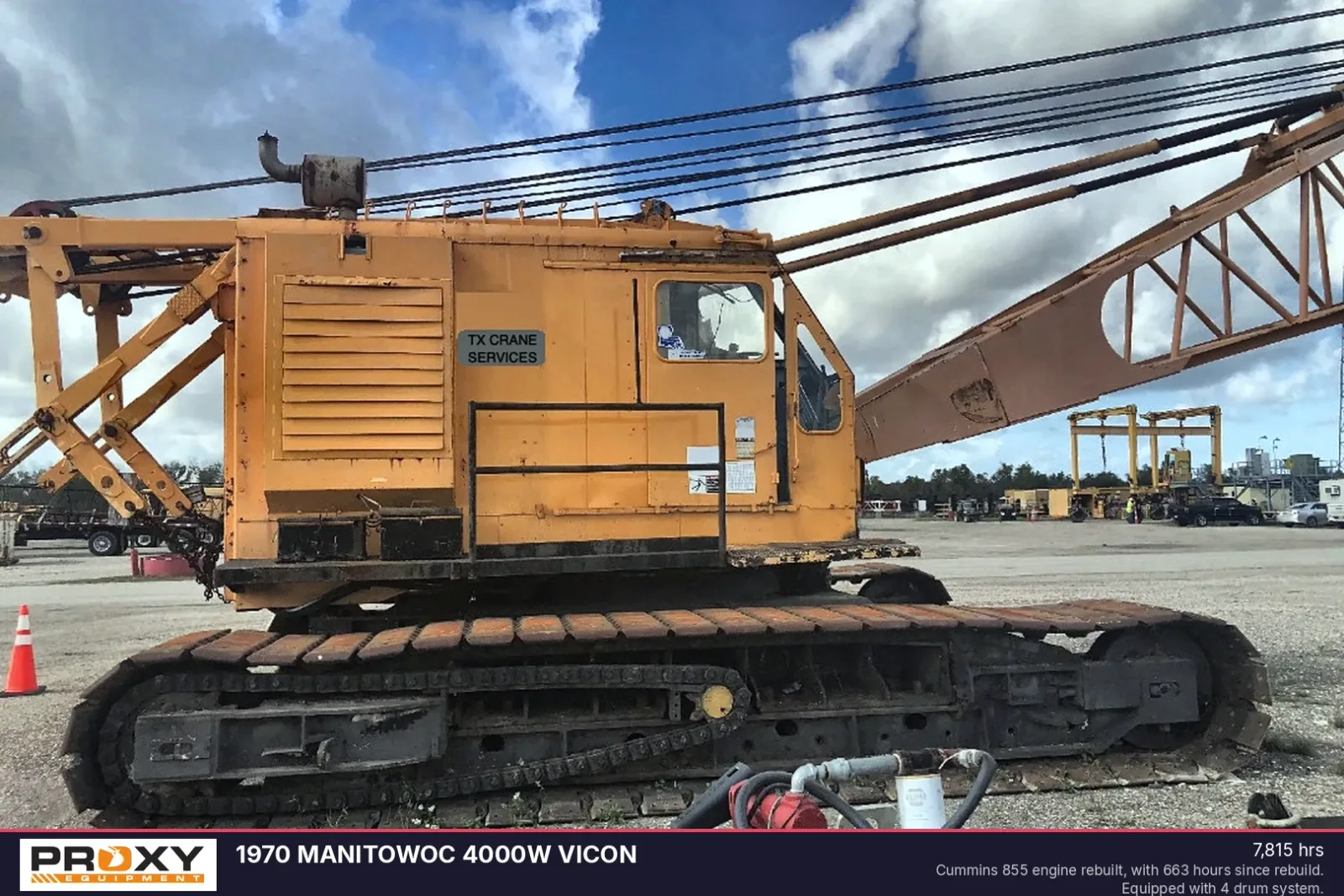

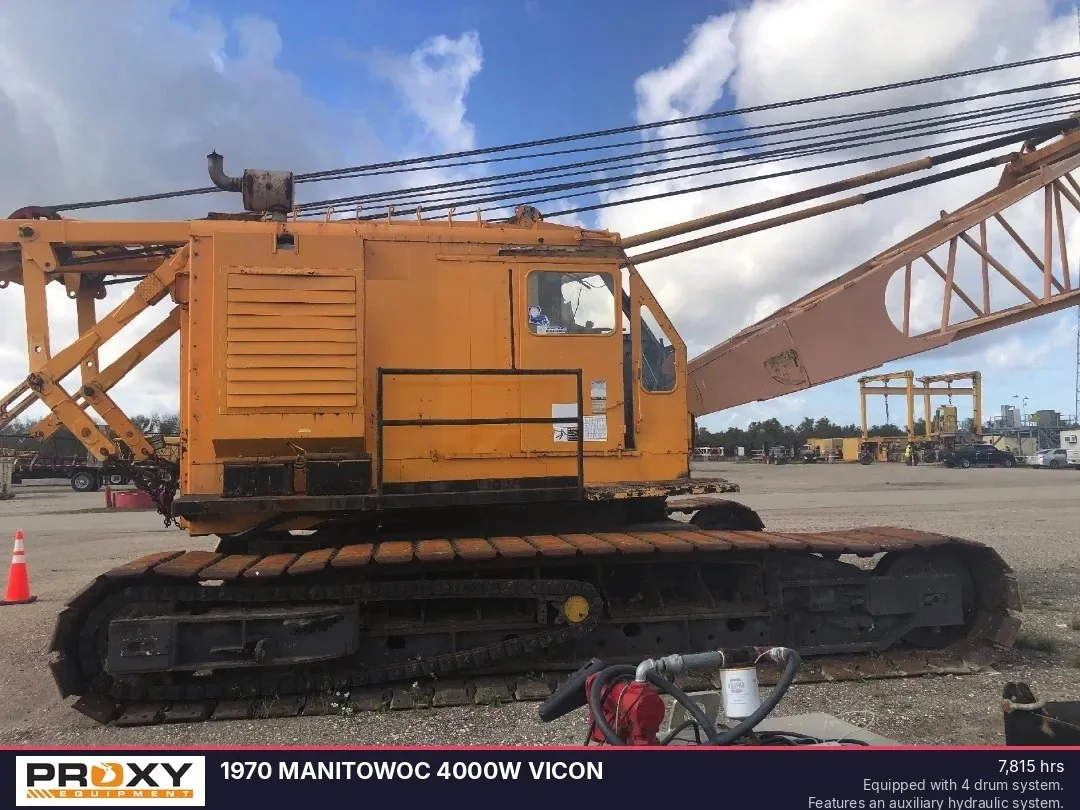

1970 MANITOWOC 4000W VICON
cranes liftingMANITOWOCAvailable
$69,000
Located in Louisiana
Year
1970
Hours
7,815
Horsepower
400 HP
Operating Weight
315,160 lbs
Item # PE-40276Stock # PK18B227276
About this 4000W VICON
The Manitowoc 4000W VICON is a heavy-duty lattice boom crawler crane renowned for its versatility and robust lifting capabilities. Equipped with the exclusive VICON control system, it offers precise hoist and swing control, making it suitable for a wide range of applications including general construction, infrastructure projects, and industrial heavy lifting. Its modular design also facilitates transport and on-site conversion.
- VICON control system for precision operation
- Configurable as lift crane, ringer, tower crane, clamshell, or dragline
- Extendable crawlers for enhanced stability and mobility
- Multiple engine options for varied power requirements
- Modular design for easier transport and assembly
Equipment & Attachments
- Features an auxiliary hydraulic system.
- Includes isolated boom hoist.
- Includes 150 feet of #22 boom.
- Features a detachable boom point.
- Additional boom sections are available.
Maintenance & Service
- Cummins 855 engine rebuilt, with 663 hours since rebuild.
- Service and maintenance records are available.
Additional Notes
- Equipped with 4 drum system.
- Comes with #123 Jib (no jib adapter).
- Maintained with yearly inspections at 250, 1000, and 2000 hour service intervals.
- Seller can provide a shipping quote.
Specifications
Horsepower400 HP
Operating Weight315,160 lbs
EngineCUMMINS 855
Fuel Capacity210 gal
Performance
Max Reach220 ft
Lift Capacity520,000 lbs
Travel Speed1.4 mph
Configuration
TransmissionPower transmission control with three-stage torque converter
