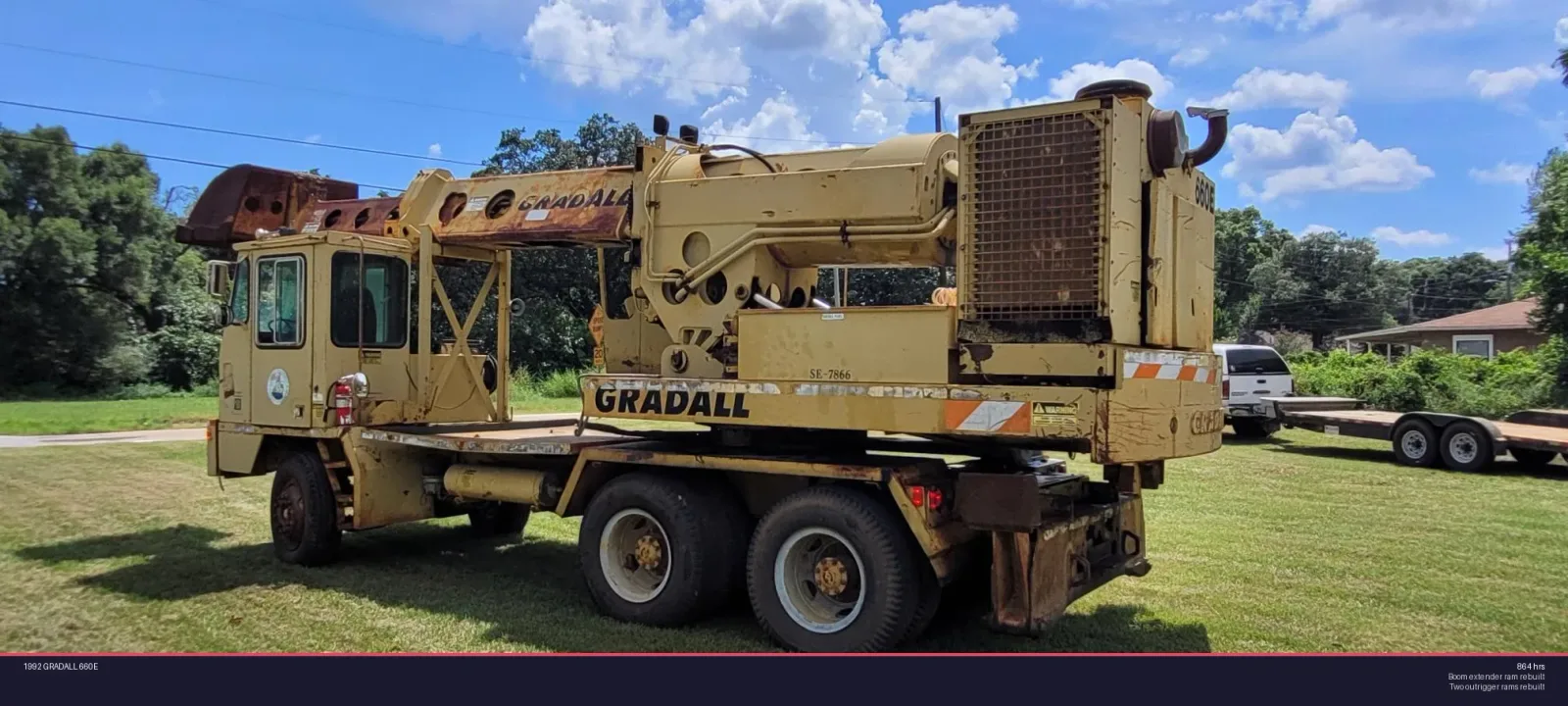

1992 GRADALL 660E
Year
1992
Hours
864
Horsepower
162 HP
Operating Weight
40,900 lbs
About this 660E
1992 Gradall Wheel Telescopic excavator. 864 hours, two-section hydraulic motor powering, individual track control., weight of 40 tons, bucket capacity of 0.76 cubic meters, transport length of 7 meters, transport width and height at 3 meters. Weight: forty tons. Bucket Capacity: 0.76 m³. Transport Length: seven meters, Cummins 6BTA5. 5.9 liters. Maximum Torque: 606 Nm at 1500 rpm, six, Cylinder Bore x Stroke: 102 x 120 mm, Hydraulic Pump Capacity: 136 gpm total at 2500 rpm,120°F, Auxiliary Pump: 6 gpm, Boom Hoist Cylinders: 2, 5" ID, 2.75" rod, 45.75" stroke Tool Cylinder: 5" ID, 3" rod, 19.63" stroke, Travel Speed: 0.9 mph or 1.9 mph, Travel Speed: 1 mph or 2 mph, Gradeability: 60%, Gradeability (high speed): 37%, Drawbar Pull (max): 33,284 lbs. Rebuilt boom extender ram, rebuilt outrigger rams (2). Rebuilt trans, new clutch, new hydraulic fluid.
- Telescoping boom for extended reach and precise placement
- 360° continuous boom tilt for enhanced versatility
- Cummins 6BTA5.9 diesel engine for reliable power
- Dual-range travel speed for adaptability on job sites
- Robust crawler undercarriage for stability and traction
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Equipment & Attachments
- Boom extender ram rebuilt
Maintenance & Service
- Two outrigger rams rebuilt
- Transmission rebuilt
- New clutch installed
Additional Notes
- New hydraulic fluid
Specifications
Performance
Dimensions
About this Model
The 1992 Gradall 660E is a versatile crawler excavator known for its unique telescoping boom, offering exceptional precision and maneuverability for a wide range of applications. Powered by a robust Cummins diesel engine, this heavy-duty machine is ideal for demanding excavation, grading, and material handling tasks, particularly in environments requiring precise control and reach.
General information about the GRADALL 660E model line. Details for this specific unit are above.
