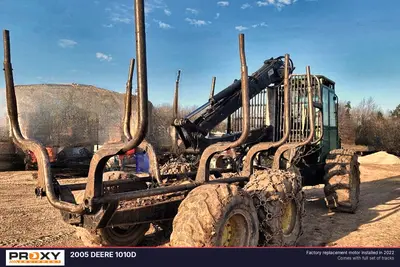

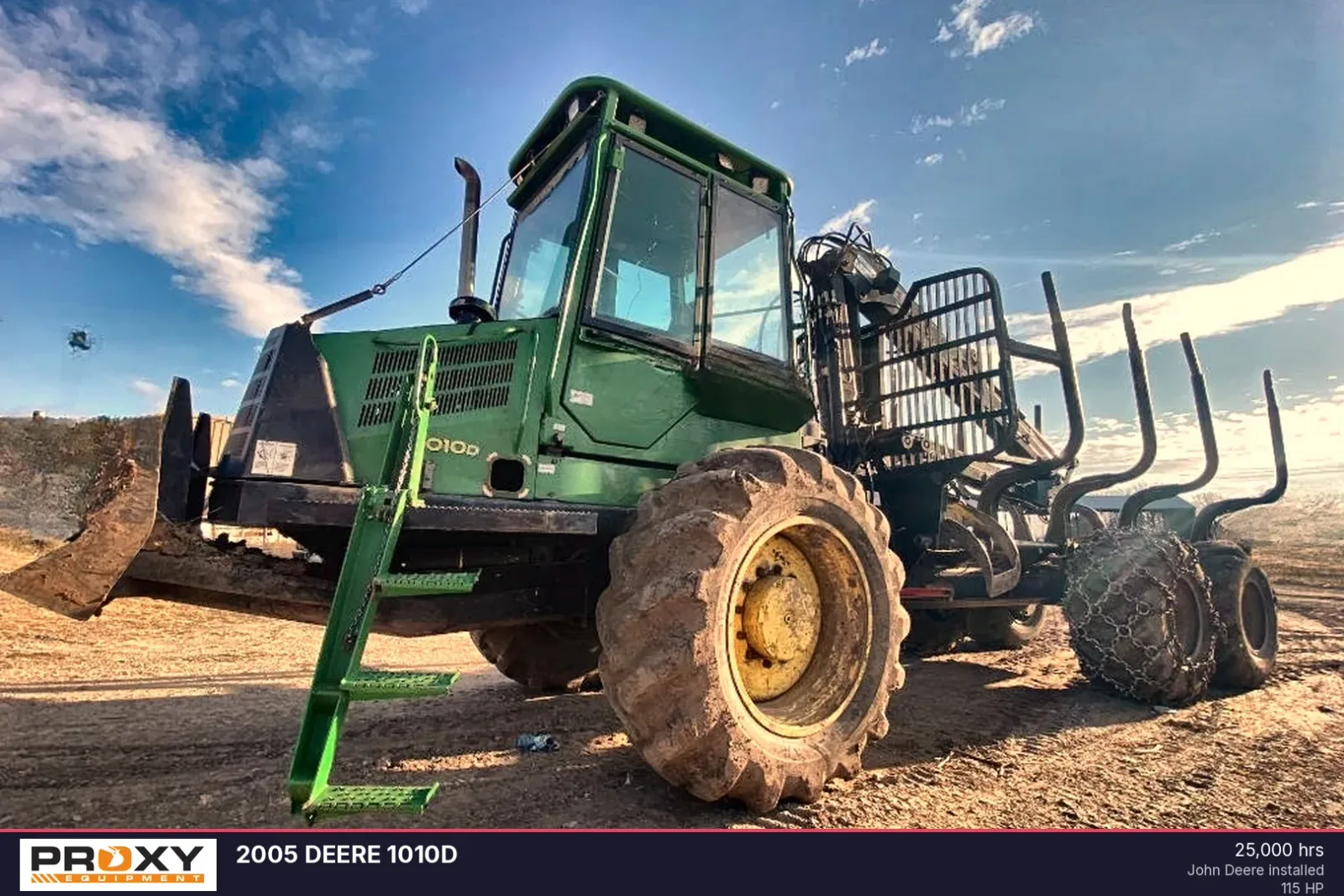

2005 DEERE 1010D
Year
2005
Hours
25,000
Horsepower
115 HP
Operating Weight
27,557 lbs
About this 1010D
2005 Deere 1010D Forwarder, Factory replacement motor installed in 2022. Comes with full set of tracks. Length 30.52ft in, Wheelbase 15.75ft in, Width Over Tires 8.8ft in, Height To Top Of Crane 12.17ft in Ground Clearance 1.99ft in, Length Of Bunk Area 16.08ft in, Width Of Bunk Area 8.73ft in, Engine-Number Of Cylinders 4, Engine Make 2240, Engine Model 4045H, Power 115hp, Torque 367lb ft, Power Measured @ 2000rpm, Displacement 276cu in, Operating Weight - 6wd 27557.8lb, Fuel Capacity 29.9gal, Hydraulic System Fluid Capacity 50.2gal, Operating Voltage 24V, Alternator Supplied Amperage 100amps, Front/Rear Tire Size - 6wd 600-34/14 / 600-26.5/20, Transmission Type hydrostatic/mechanical, Number Of Forward Gears 2, Number Of Reverse Gears 2, Max Speed 13.7mph, Hydraulic Pump Type variable displacement, Flow Capacity 39.7gal/min, Relief Valve Pressure 3480psi, Bunk Load Weight - 6wd 22046.3lb, Load Area 37.7ft2, Crane Type Timberjack CF 5 72, Max Reach 23.6ft in, Gross Lift Torque, 75231.4lb ft, Gross Slew Torque 18000lb ft. Runs and operates as it should.
- Powerful John Deere PowerTech 4045H engine
- Robust 6-wheel drive with high tractive effort
- Comfortable, climate-controlled cab with air-suspension seat
- Efficient CF5 crane with impressive reach
- Low ground pressure for minimal environmental impact
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Equipment & Attachments
- Comes with full set of tracks
Additional Notes
- Factory replacement motor installed in 2022
Specifications
Performance
Configuration
About this Model
The John Deere 1010D is a versatile and reliable six-wheel forwarder, ideally suited for demanding thinning and regeneration harvesting applications. It is known for its low center of gravity, smooth transmission, and powerful CF5 boom, ensuring efficient and environmentally friendly operation in challenging forest terrains.
General information about the DEERE 1010D model line. Details for this specific unit are above.
