2010 CATERPILLAR 12M
View full size
1 / 36

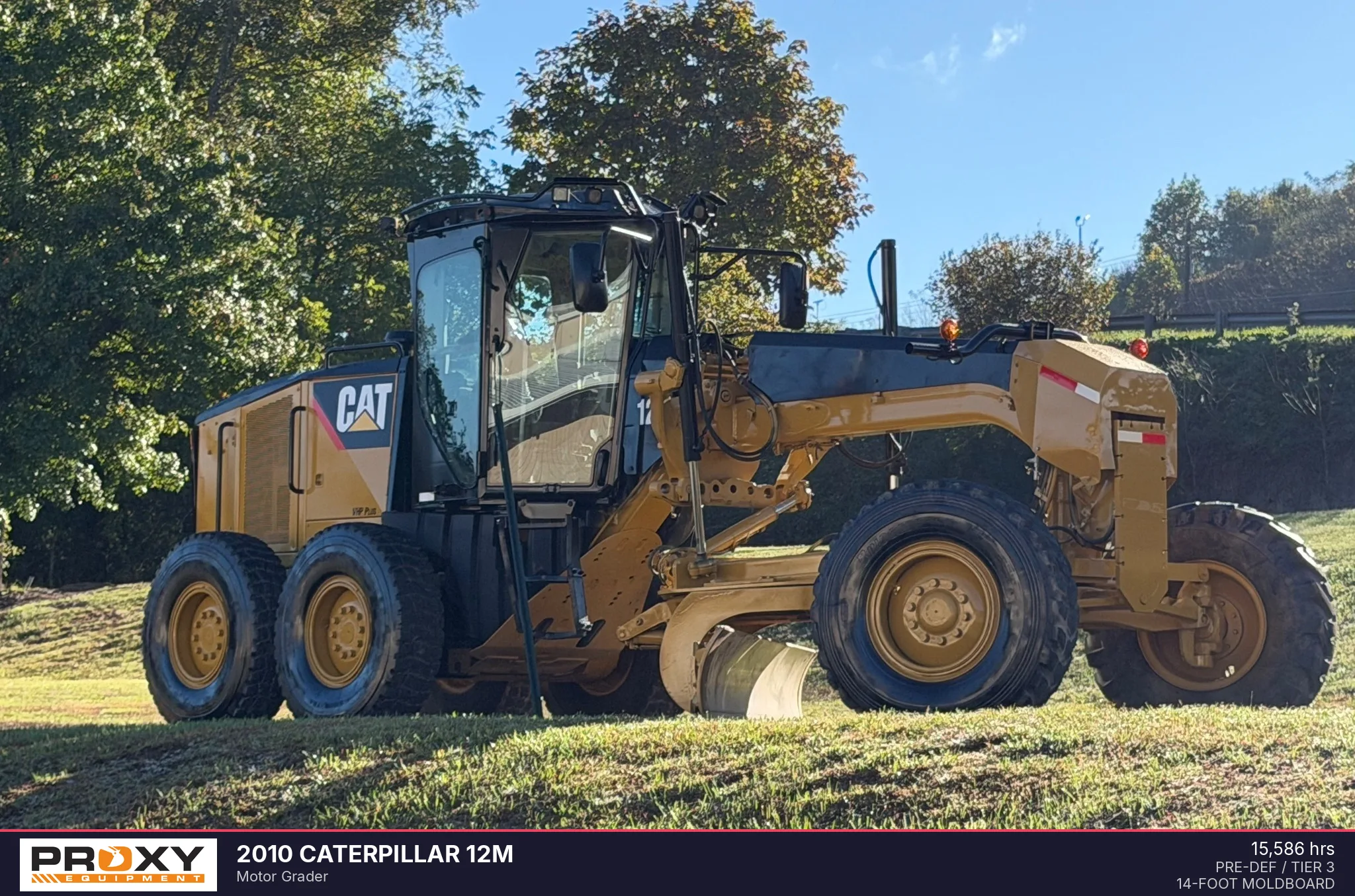

2010 CATERPILLAR 12MMotor Grader

Grader · 15,586 hrs · Virginia

GraderNo DEF
earth movingCATERPILLARAvailable
$72,900
Located in Virginia

Year

2010

Hours

15,586

Horsepower

193 HP

Operating Weight

40,565 lbs

Item # PE-47207Stock # JMA0aJFY563827

About this 12M

2010 Caterpillar 12M motor grader with 15,587 verified operating hours. Powered by a Cat C6.6 ACERT turbocharged diesel engine. VHP Plus rated at 158–193 net HP comes standard. This pre-DEF / Tier 3 emissions architecture unit requires no diesel exhaust fluid or DPF regeneration systems. Features an 8-speed direct-drive powershift transmission that operates smoothly through all forward and reverse gears with zero diagnostic codes. Advanced electro-hydraulic dual joystick controls for uninhibited forward visibility to the draft frame. Enclosed climate-controlled cab with cold A/C, functional heat, and suspension seating. The upgraded 14-foot moldboard is equipped with hydraulic side-shift, blade tip tilt, and working dual float functions. Tight circle drive and articulation hitch. All six tandem wheel hub seals are dry. Deep-tread 17.5R25 Maxam radial tires. Heavy-duty factory rear push block/counterweight. No ripper or scarifier installed. Primarily utilized for routine road maintenance. Clean title with zero active liens. Engine has not been rebuilt.

  • Cat C6.6 ACERT turbocharged diesel engine
  • VHP Plus rated at 158–193 net HP
  • 14 ft moldboard / blade
  • Electro-hydraulic dual joystick controls
  • Pre-DEF / Tier 3 emissions
  • Rear push block / counterweight
  • 4WD drive
  • Tires: 17.5R25

Equipment & Attachments

  • DUAL JOYSTICK CONTROLS
  • ENCLOSED CAB

Additional Notes

  • PRE-DEF / TIER 3
  • 14-FOOT MOLDBOARD
  • 4WD
  • WORKING FLOAT FUNCTIONS

Specifications

Horsepower193 HP
Operating Weight40,565 lbs
EngineCat C6.6 ACERT
EmissionsTier 3 / Stage IIIA equivalent
Fuel Capacity90 gal

Configuration

TransmissionDirect drive, power shift, countershaft, 8f/6r
Cab TypeEnclosed cab
BrakesMultiple oil-disc
Tire Size17.5R25
GVWR48,601 lbs

Additional Specifications

A/CWorking
Comes With14 ft moldboard / blade, rear push block / counterweight
Drive4wd
Moldboard Width14 ft
RipperNone
ScarifierNone
Front AttachmentNone
Grade ControlNone

Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
