2011 BRODERSON IC80-3H
cranes liftingBRODERSONAvailable
$26,500
Year
2011
Hours
1,306
Horsepower
85 HP
Operating Weight
16,750 lbs
Item # PE-45372Stock # PKR0WMGp616711
About this IC80-3H

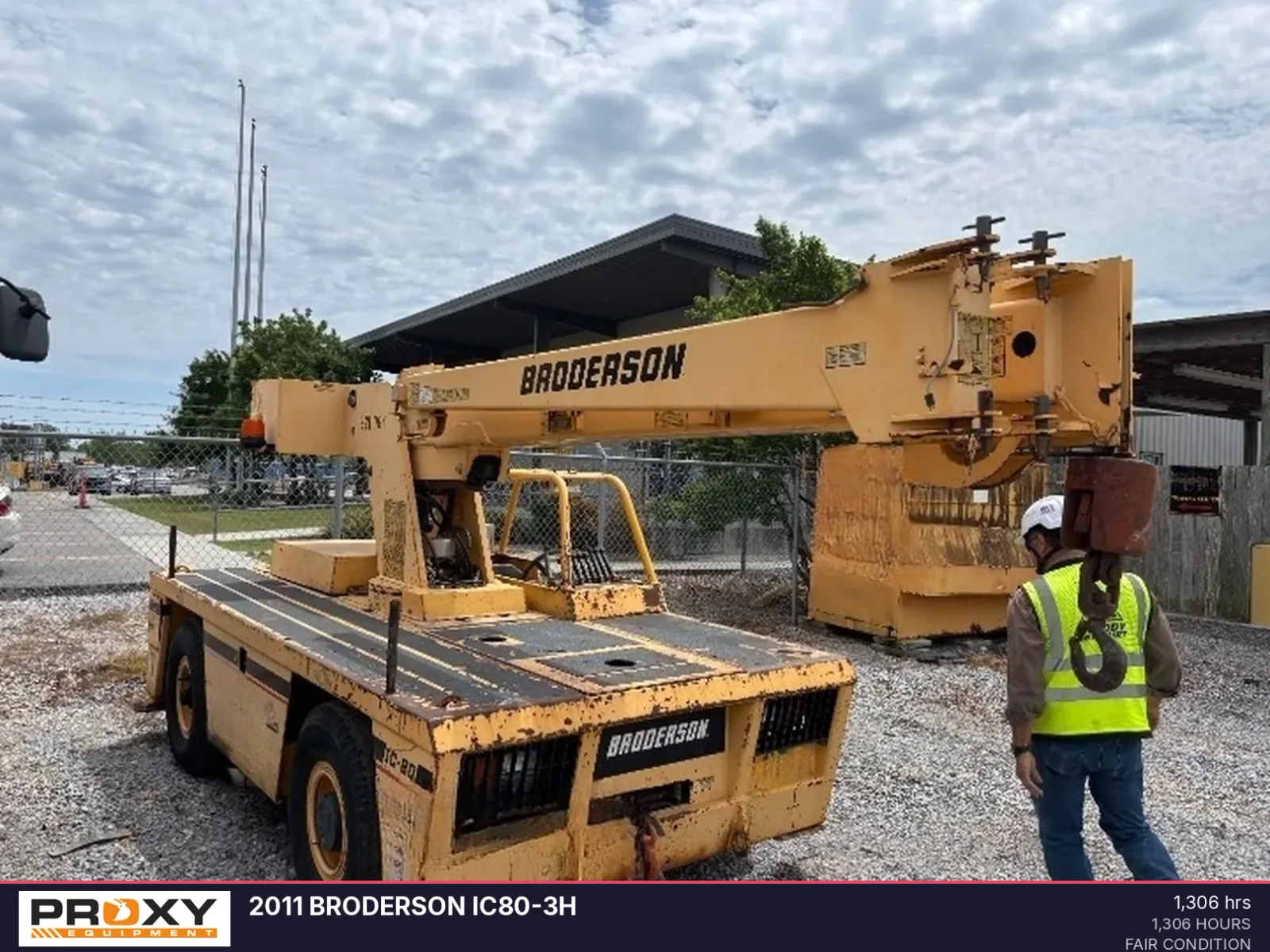

This 2011 Broderson IC80-3H is a 9-ton capacity industrial carry deck crane designed for material handling in tight spaces. It is powered by an 85 HP Cummins diesel engine and features a 3-section hydraulic boom with a 30-foot maximum length, plus a 10-foot swing-away jib for a maximum tip height of 46'8". The unit is equipped with 360-degree continuous rotation, 2-wheel drive, and 4 independent hydraulic outriggers, and it utilizes Greer MG586 controls. This crane is fully operational and comes with maintenance records.
- 9-ton (18,000 lbs) max lift capacity
- 85 HP Cummins diesel engine
- 3-section hydraulic boom with 10' jib
- 360-degree continuous rotation
- 4 independent hydraulic outriggers
Specifications
Horsepower85 HP
Operating Weight16,750 lbs
EngineCummins
EmissionsTier 3
Fuel Capacity17.6 gal
Performance
Max Reach40 ft
Dump Height46.67 ft
Lift Capacity18,000 lbs
Hydraulic Flow48 GPM
Travel Speed22 mph
Configuration
Transmission4-speed powershift
Cab TypeEnclosed cab
Axle Configuration2-axle
BrakesWet disc
Trailer Specs
Capacity9 tons
Axles2
Overall Length17.83 ft
Deck Width78"
Deck Height41"
OutriggersYes
