2011 KOBELCO 115SR DZ
earth movingKOBELCOAvailable
$32,000
Located in Wisconsin
Year
2011
Hours
9,528
Horsepower
84 HP
Operating Weight
31,750 lbs
Item # PE-40322Stock # TOT0M8VV230941
About this 115SR DZ

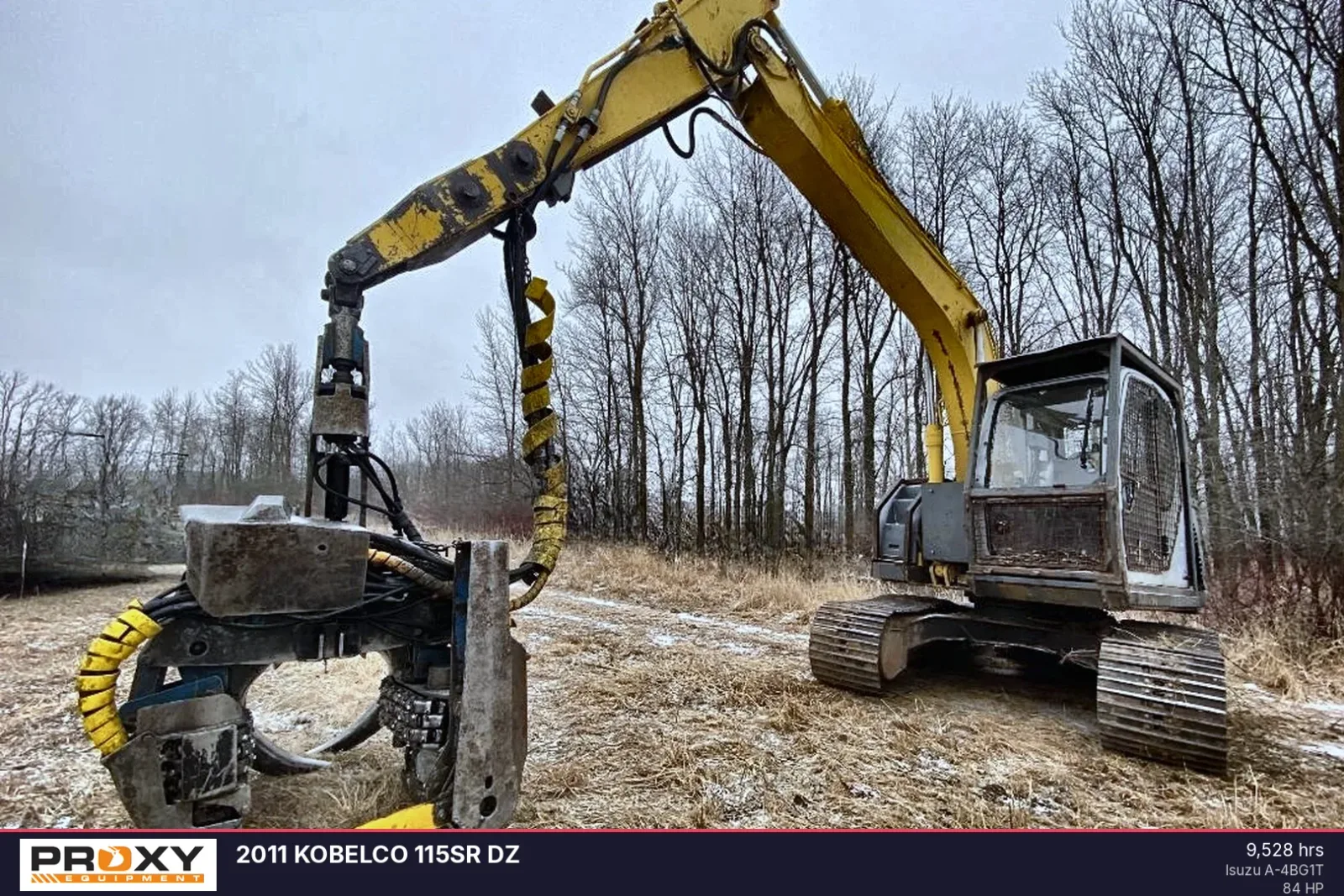

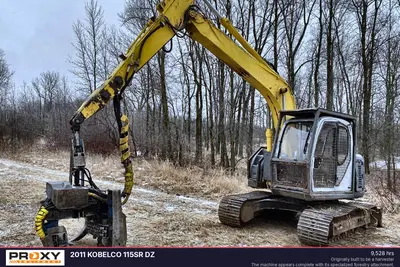

2011 Kobelco 115SR DZ Crawler excavator unit runs strong; it is a reliable machine that was originally built to be a harvester. With an operating weight of 31,750 lbs and 84 hp of net power, it has a max reach of 26.94 ft and a max cutting height of 28.32 ft. The unit comes with a Keto 500 Harvester Head, which is available for sale separately, and is capable of making 20-inch cuts in one pass. This excavator is ready to work.
- Ultra-small tail swing radius for tight spaces
- Ergonomic and comfortable cab with climate control
- Reliable Isuzu engine with direct fuel injection
- Electronic Active Control System (E.A.C.S.) for precise control
- Two-speed travel modes ('Turtle' and 'Rabbit') for versatility
Additional Notes
- Originally built to be a harvester
Specifications
Horsepower84 HP
Operating Weight31,750 lbs
EngineIsuzu A-4BG1T
Fuel Capacity44.4 gal
Performance
Bucket Capacity0.7 cu yd
Max Dig Depth18.12 ft
Max Reach26.94 ft
Dump Height20.35 ft
Hydraulic Flow81.4 GPM
Travel Speed3.7 mph
Ground Pressure5.5 PSI
Configuration
Cab TypeEnclosed, ergonomic with air conditioning and suspension seat
Dimensions
Tail Swing56.4 in
Track TypeTriple grouser
Shoe Width23.6 in
