2011 NEW HOLLAND L220
Year
2011
Hours
1,804
Horsepower
67 HP
Operating Weight
6,459 lbs
About this L220

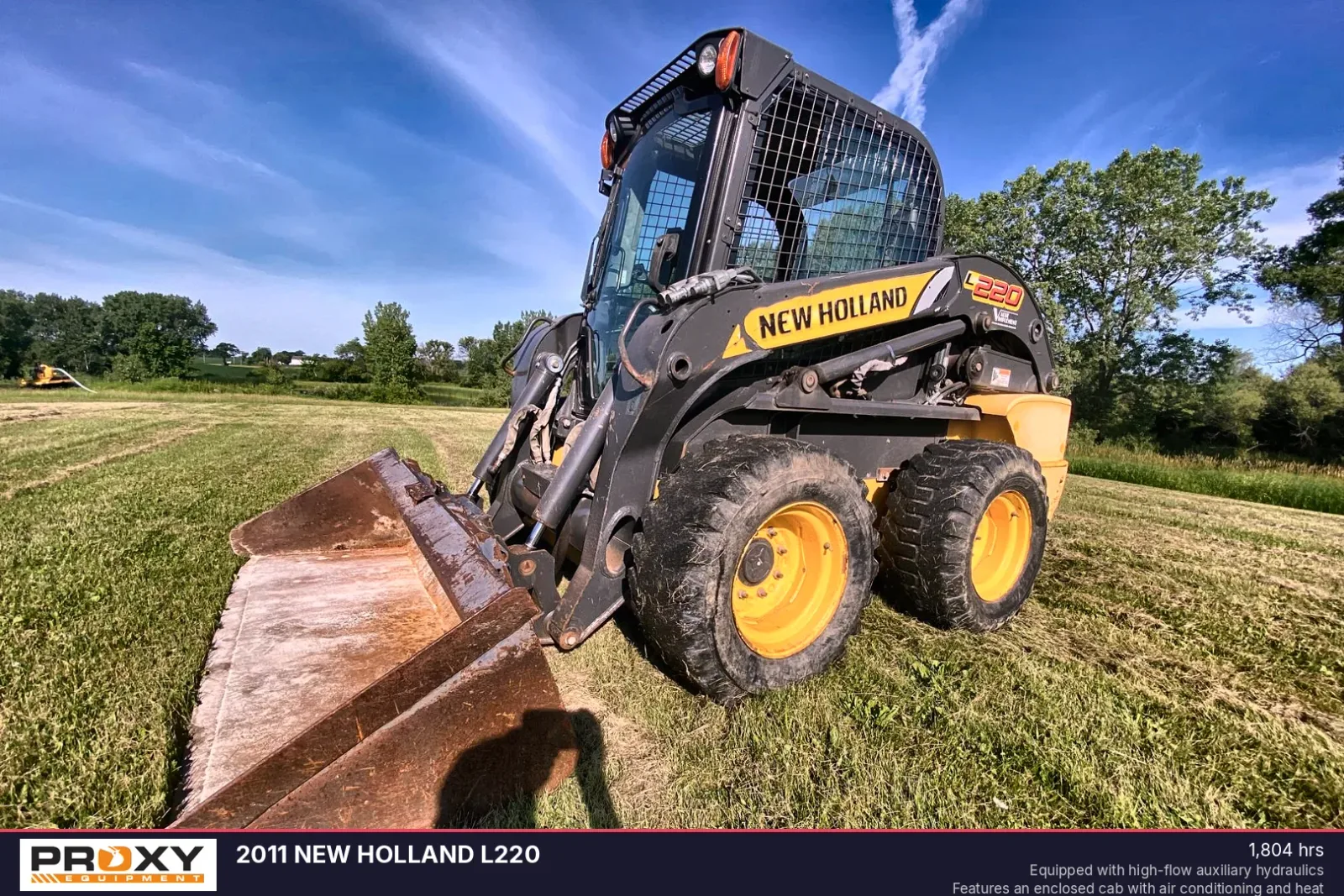

2011 New Holland L220 Skid Steer Superboom, 1,804 hrs., Aux hydraulics (High-Flow), Air & heat in enclosed cab, Foot controls, 72" Bucket, 67 HP diesel, Operating Weight 6,459 lbs., Ground Clearance 8in, Wheelbase 3.71ft in, Bucket Hinge Pin 120.99in, Dump Angle 52 degrees, Angle Of Departure 25degrees, Top Of Rops 78.67in, Overall Width 5.76ft in Bottom Of Level Bucket, Fully Raised 114.26in, Turbocharged Aftercooled with external EGR Fuel Injection HPCR Direct, Horsepower Per Sae J1349 Net 64hp, Horsepower Per Sae J1349 Gross 67hp, Engine Model N844LTA, Rated Speed 2800rpm, Peak Torque 153.5lb ft, Displacement 134.3cu in, Fuel Tank 19.5gal, Performance Tipping Load 3999.2lb, Operating Weight 6459.6lb, Breakout Force, Bucket Cylinder 5283.1lb, Breakout Force, Lift Cylinder 3439.6lb, Rated Operating Load, 50% Tip 1995.2lb, Power Train Travel Speed, Low Range 7.8mph, Travel Speed, High Range 11.4mph, Weights Operating Weight 6459.6lb, Optional High Flow 30.7gal/min, Relief Valve Pressure 3046psi. Comes with NEW extra set of tires. Basically a brand new machine.
- Super Boom® Vertical Lift Design
- Dual-Range Transmission (2-speed)
- Enclosed Cab with HVAC
- Easy Serviceability
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Equipment & Attachments
- Equipped with high-flow auxiliary hydraulics
- Features an enclosed cab with air conditioning and heat
- Includes a 72-inch bucket
Additional Notes
- Equipped with foot controls
- Comes with a new extra set of tires
Specifications
Performance
Configuration
About this Model
The 2011 New Holland L220 is a powerful and versatile skid steer loader, ideal for construction, landscaping, and agricultural tasks. It features New Holland's patented Super Boom® vertical lift for superior dump height and reach, coupled with a comfortable, enclosed cab and a dual-range transmission for enhanced productivity and operator comfort.
General information about the NEW HOLLAND L220 model line. Details for this specific unit are above.
