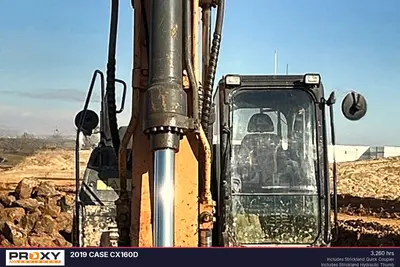

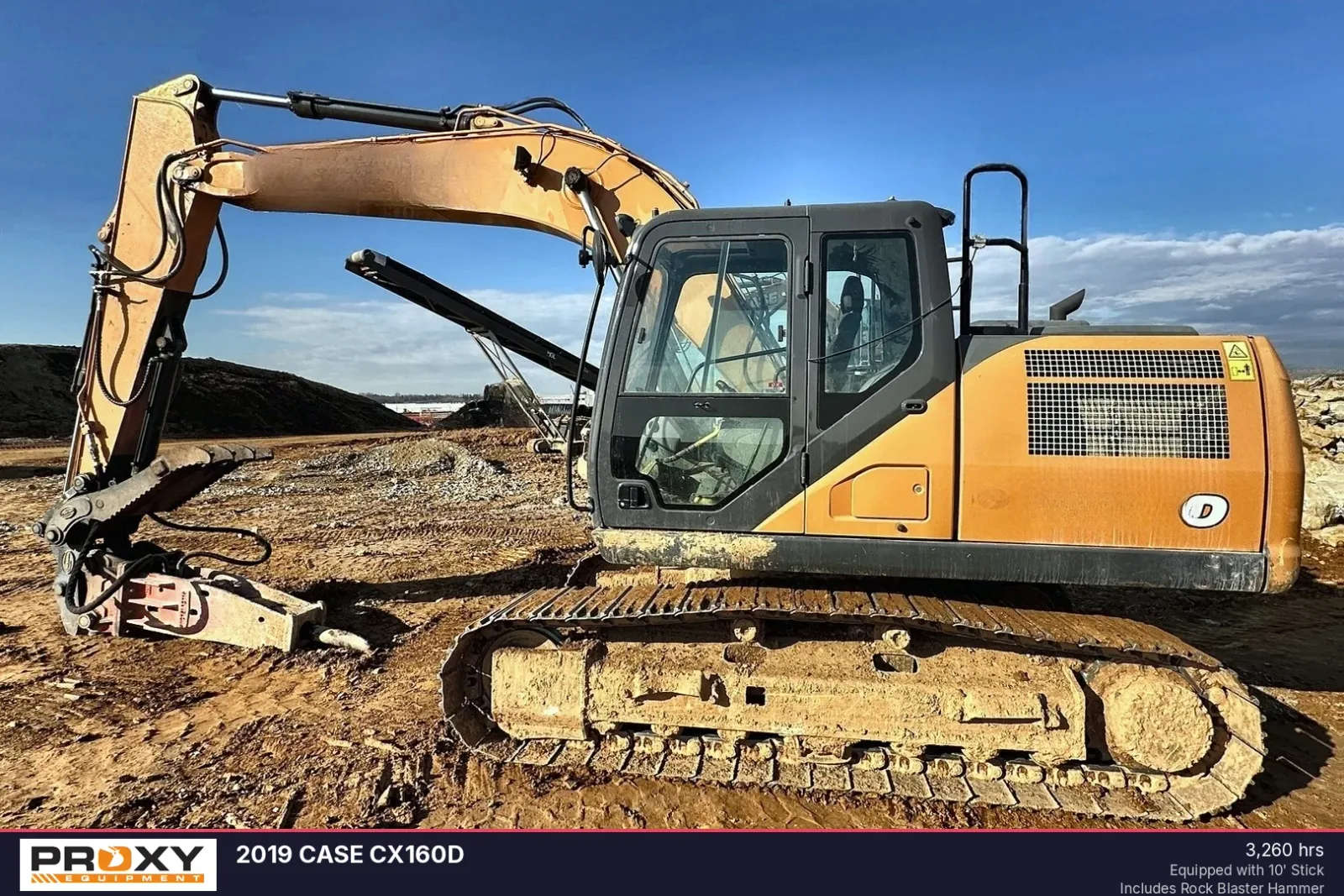

2019 CASE CX160D
earth movingCASEAvailable
$109,000
Located in Pennsylvania
Year
2019
Hours
3,260
Horsepower
112 HP
Operating Weight
38,400 lbs
Item # PE-40802Stock # RWV0iQDp937141
About this CX160D
The CASE CX160D is a versatile and fuel-efficient full-size crawler excavator from the D-Series, designed for a wide range of applications including basement digging, trenching, and retention pond finishing. It features the CASE Intelligent Hydraulic System for enhanced control and faster cycle times, coupled with a comfortable and intuitive operator environment.
- CASE Intelligent Hydraulic System (CIHS) for improved control and fuel efficiency
- Tier 4 Final engine with SCR technology for reduced emissions and no DPF
- Spacious, pressurized cab with heated air-ride seat, 7-inch LED monitor, and Bluetooth radio
- Faster cycle times (up to 5% faster than C-Series) due to advanced hydraulics
- Robust arm and boom design for greater durability and lifting performance
Equipment & Attachments
- Includes Strickland Quick Coupler
- Includes Strickland Hydraulic Thumb
- Equipped with Auxiliary Plumbing
- Equipped with 10' Stick
- Includes 36" bucket (not shown)
Additional Notes
- Includes Rock Blaster Hammer
Specifications
Horsepower112 HP
Operating Weight38,400 lbs
EngineISUZU AR-4JJ1X
EmissionsTier 4 Final
Fuel Capacity79 gal
Performance
Max Dig Depth19.92 ft
Max Reach29.67 ft
Dump Height21.67 ft
Hydraulic Flow75.02 GPM
Travel Speed3.4 mph
Ground Pressure5.9 PSI
Configuration
TransmissionTwo-speed independent travel/axial piston
Cab TypePressurized cab with ac/heat/defrost, heated air-suspension seat, 7-inch led color monitor, bluetooth radio, rear-view camera
Dimensions
Tail Swing97 in
Track TypeTriple grouser steel shoes
Shoe Width24 in
