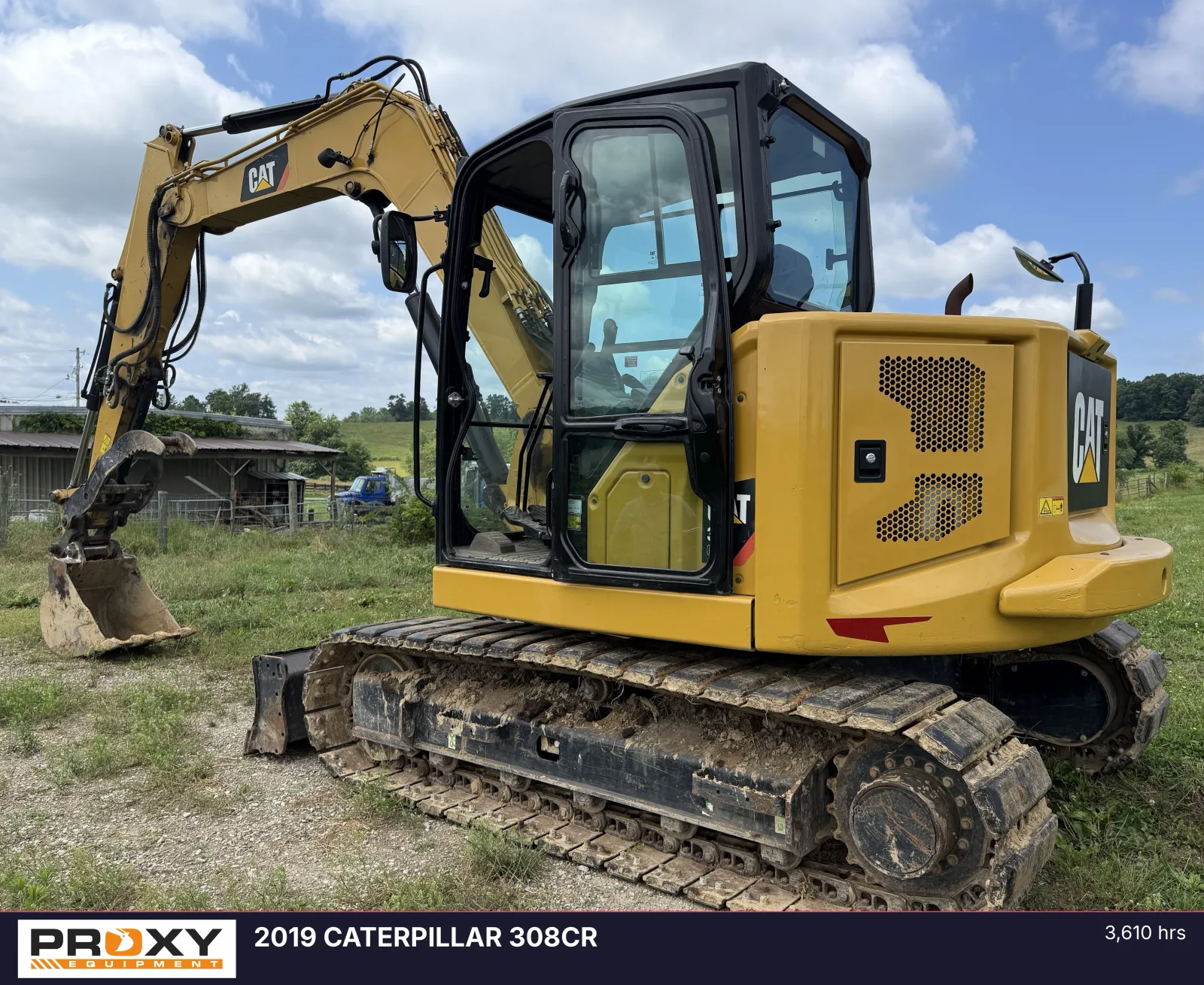

2019 CATERPILLAR 308CR
compactCATERPILLARAvailable
$84,900
Year
2019
Hours
3,610
Horsepower
69.5 HP
Operating Weight
20,385 lbs
Item # PE-45637Stock # MJT0x98X467417
About this 308CR
The Cat 308 CR VAB (Variable Angle Boom) is an 8-ton class mini hydraulic excavator featuring a flexible boom system that allows the boom angle to be adjusted for working in tight spaces and around obstacles. Powered by a Cat C3.3B engine producing 69.5 net hp, this machine delivers strong digging performance with a maximum dig depth of 12.6 ft (VAB in) to 11.4 ft (VAB out) and reach up to 25.5 ft. The VAB configuration provides exceptional versatility for utility work, landscaping, and construction applications where space is limited.
- Variable Angle Boom (VAB) for tight-space flexibility
- Cat C3.3B Tier 4 Final/Stage V engine, 69.5 net hp
- Load sensing hydraulics with variable displacement piston pump
- Expandable undercarriage from 59 to 90.6 inches
- Zero or reduced tail swing options with counterweight choices
Specifications
Horsepower69.5 HP
Operating Weight20,385 lbs
EngineCat C3.3B
EmissionsTier 4 Final / EU Stage V
Fuel Capacity39 gal
Performance
Max Dig Depth12.6 ft
Max Reach25.5 ft
Dump Height11.3 ft
Hydraulic Flow44 GPM
Travel Speed3.2 mph
Ground Pressure5.5 PSI
Configuration
Cab TypeEnclosed rops/fops cab
Dimensions
Tail Swing62.4 in
Track Typerubber or steel with rubber pads
Shoe Width17.7 in
