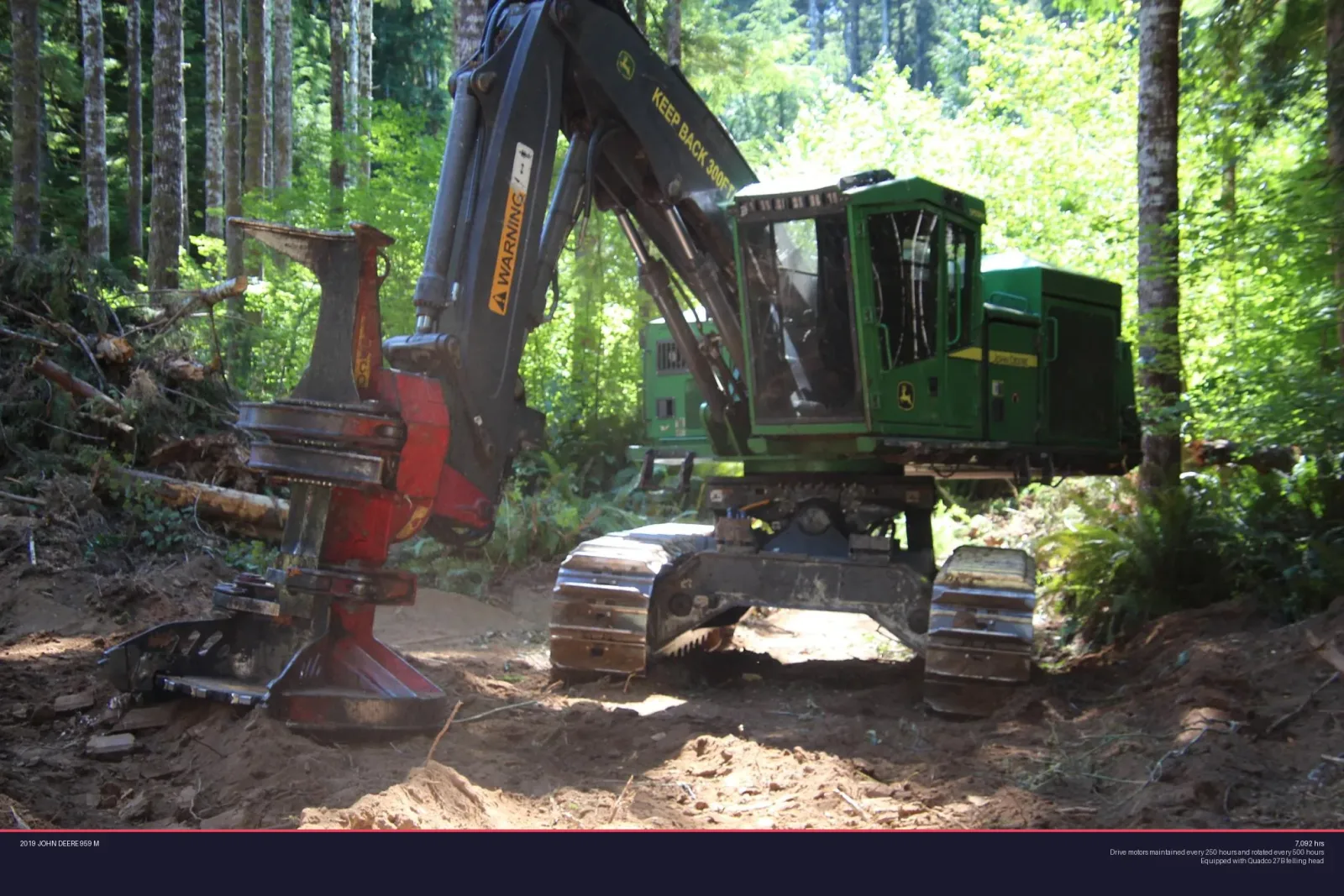

2019 JOHN DEERE 959 M
Year
2019
Hours
7,373
Horsepower
330 HP
Operating Weight
83,260 lbs
About this 959 M
2019 John Deere 959M tracked feller buncher, maintenance on drive motors done every 250 hrs, and rotated every 500hrs, 246 kW (330 hp) engine, 1392 Nm (1027 lb-ft) engine torque,Engine, Model: John Deere PowerTech Plus 6090PSS,Output: 246 kW (330 hp) @ 1900 rpm,Torque: 1392 Nm (1027 lb-ft),Rated Speed: 1900 rpm 29 ft 1 in (8.88 m) maximum boom reach, 10 ft 5 in tail swing, superstructure width of 3.2 meters (10 ft 6 in) and a track gauge of 2.72 meters (8 ft 11 in), Track Rollers (Each Side), 9Carrier Rollers (Each Side), Superstructure Width: 3200 mm (10 ft 6 in), Track Gauge: 2720 mm (8 ft 11 in), Base Carrier Length: 4.9 m (16 ft 1 in), Overall Width: 3330 mm (10 ft 11 in),Track Length on Ground: 3810 mm (12 ft 6 in),Tailswing Radius: 3180 mm (10 ft 5 in),Ground Clearance: 747 mm (29 in),Fuel Tank: 285.4 gallons Cab Leveling Tilt (Forward): 26 degrees,Cab Leveling Tilt (Rear): 14 degrees, Travel Speed: 2.3 mph,Lift Capacity at Max Reach: 17,570.9 lbs, Cutting Swath: Up to 13.2 ft weight 83,260lbs Quadco 27B Height 2,972 mm 117" Width 1,778 mm 70", Depth 1,880 mm 74", Maximum Throat Opening 1,466 mm 57.7",Maximum Throat, Opening @ Teeth 1,118 mm 44", Accumulation Area 0.58 m2 6.2 ft2, Weight with XT Rotate 4,100 kg 9,040 lbs, Cutting Capacity 686 mm 27", Tip-to-Tip Diameter 1,651 mm 65",Rated Saw Speed 1,000 rpm, Number of Teeth 18, Saw Kerf 59 mm 2 5/16" Style One Piece,Cylinders (Diameter) 3",Grab Arms 2 Cylinders, Accumulating Arms 2 Cylinders
- Long and wide undercarriage for singular stability on steep slopes
- Heavy-duty John Deere PowerTech™ Plus 9.0L diesel engine
- Powerful standard boom with high lift capacity and 8.9 m (29 ft. 4 in.) reach
- JDLink™ connectivity for tracking equipment and managing fleet performance
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Additional Notes
- Drive motors maintained every 250 hours and rotated every 500 hours
- Equipped with Quadco 27B felling head
Specifications
Performance
Configuration
Dimensions
About this Model
The John Deere 959M is a robust tracked feller buncher designed for demanding forestry applications, offering exceptional stability and productivity in challenging terrain. It features a powerful John Deere PowerTech Plus 9.0L engine, a long boom with high lift capacity, and advanced technology for efficient operation and fleet management. This machine is built to tackle difficult tasks with reliability and enhanced operator comfort.
General information about the JOHN DEERE 959 M model line. Details for this specific unit are above.
