2020 CASE CX55BMini Excavator
Excavator · 6,125 hrs · Texas
Year
2020
Hours
6,125
Horsepower
37 HP
Operating Weight
11,312 lbs
About this CX55B

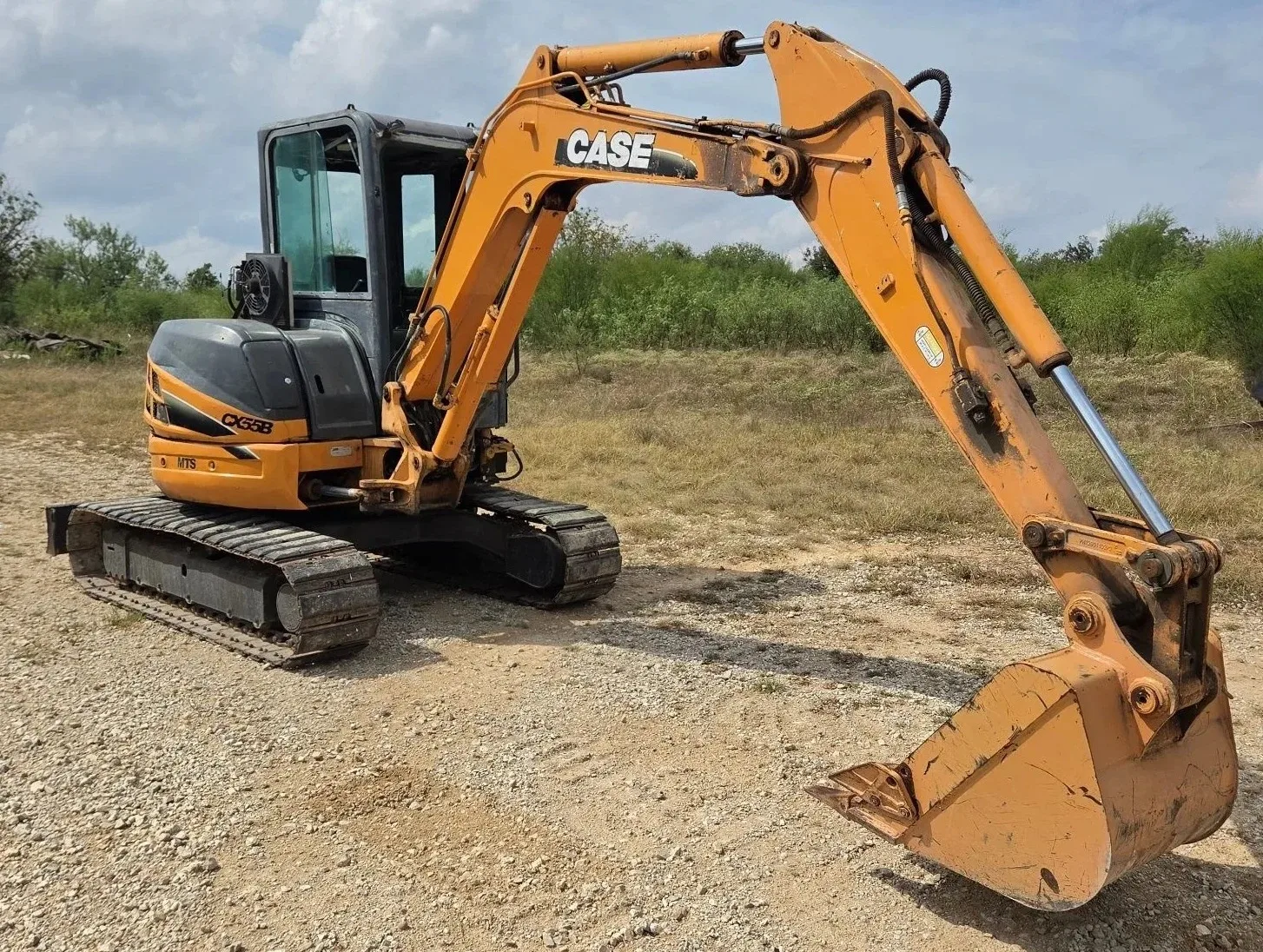

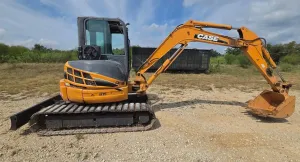

2020 CASE CX55B mini excavator with enclosed cab and 2-way auxiliary hydraulics. Powered by a Yanmar 4TNV88-C-PYB diesel engine producing 37.4 hp net (SAE J1349) at 2,400 rpm. This Tier 4 Final certified machine offers a maximum dig depth of 12 ft 10 in and a bucket digging force of 11,128 lbs in the 2-position configuration. The CX55B features a minimal tail swing design for working in confined spaces, with rubber tracks and a fully hydrostatic drive system.
- Yanmar 37.4 HP Net Diesel
- Tier 4 Final Certified
- Enclosed Cab
- 2-Way Aux Hydraulics
- Rubber Tracks
- Max Dig Depth
- Minimal Tail Swing
Specifications
Performance
Configuration
Dimensions
Additional Specifications
About this Model
2020 CASE CX55B mini excavator, Yanmar 4TNV88-C-PYB diesel engine 37.4 hp net (SAE J1349) at 2,400 rpm, 2-way auxiliary hydraulics, Tier 4 Final certified, fully hydrostatic drive system, Operating weight 12,000 lbs., Drawbar pull 12,000 lbs., Length 19ft 11in., Width 6ft 4in., Height 8ft. 4in., Rubber tracks width 16in. Tail swing radius 4ft. 2in., Max dig depth 12ft 10in., Bucket digging force 11,128 lbs in the 2-position configuration, Max reach at ground 20ft. 6in.,
General information about the CASE CX55B model line. Details for this specific unit are above.
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
