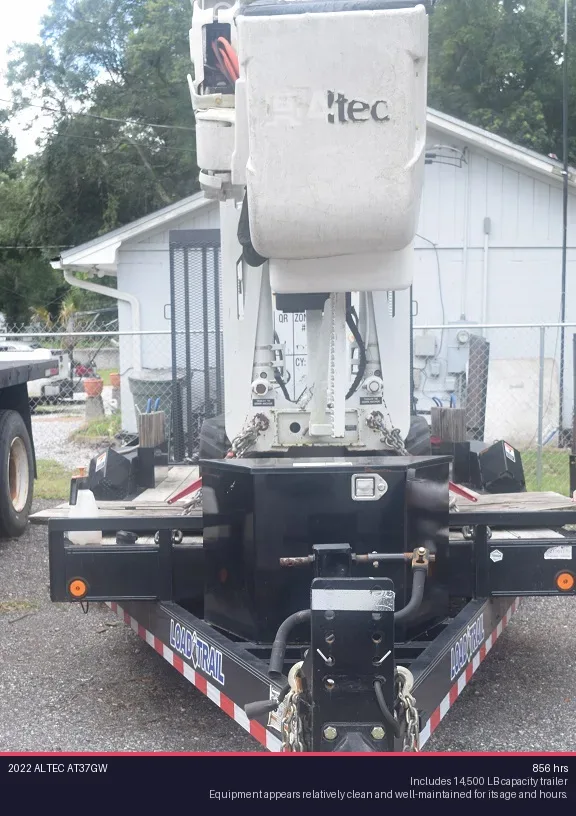

2022 ALTEC AT37GW
Year
2022
Hours
856
Horsepower
23 HP
Operating Weight
19,500 lbs
About this AT37GW
2022 ALTEC AT37GW RUBBER TRACK BUCKET LIFT, 23 HP KUBOTA ENGINE, WEIGHT 19,500LBS, 856 HOUR, telescopic articulating aerial device. 14,500 LB Capacity Trailer. Altec ISO-Grip control system, outrigger controls, motion alarms, outrigger boom interlock system., hydraulic tool outlet at the platform, 180-degree platform rotator. Working Height: 35 ft. Maximum Reach: 28 ft. Platform Capacity: 400 lb. Carrier: Track-driven, retractable tracks to thirty-four inches. Insulation: ANSI Category C, "46kV and Below"., handheld pendant ground drive controls, platform leveling control at lower controls, Continuous rotation, hydraulic tool outlet at platform, outrigger controls with motion alarms, outrigger boom interlock system. Allowable Slope 5 degrees. Side to side slope 5 degrees. Ground remote control. Hydraulic system pressure 2400 psi. Qualification voltage forty-six, boom position upper, control with high electrical resistance configured for electrical rubber covering and chassis insulation system. Financing Available.
- Retractable tracks for narrow access (down to 34 inches)
- Insulating boom (ANSI Category C, 46kV and below)
- Altec ISO-Grip® control system for precise operation
- Continuous rotation and 180-degree platform rotator
- Integrated hydraulic tool circuit at the platform
Auto-generated from manufacturer literature; please verify against the actual unit before relying on any spec. Source
Additional Notes
- Includes 14,500 LB capacity trailer
Specifications
Performance
Dimensions
About this Model
The Altec AT37GW is a specialized, track-driven articulating telescopic aerial device designed for accessing confined or difficult-to-reach areas, such as residential backyards. It features an insulating boom rated for electrical utility work, retractable tracks for narrow gate access, and a compact footprint, making it an ideal solution for tree care and utility maintenance in restricted spaces.
General information about the ALTEC AT37GW model line. Details for this specific unit are above.
