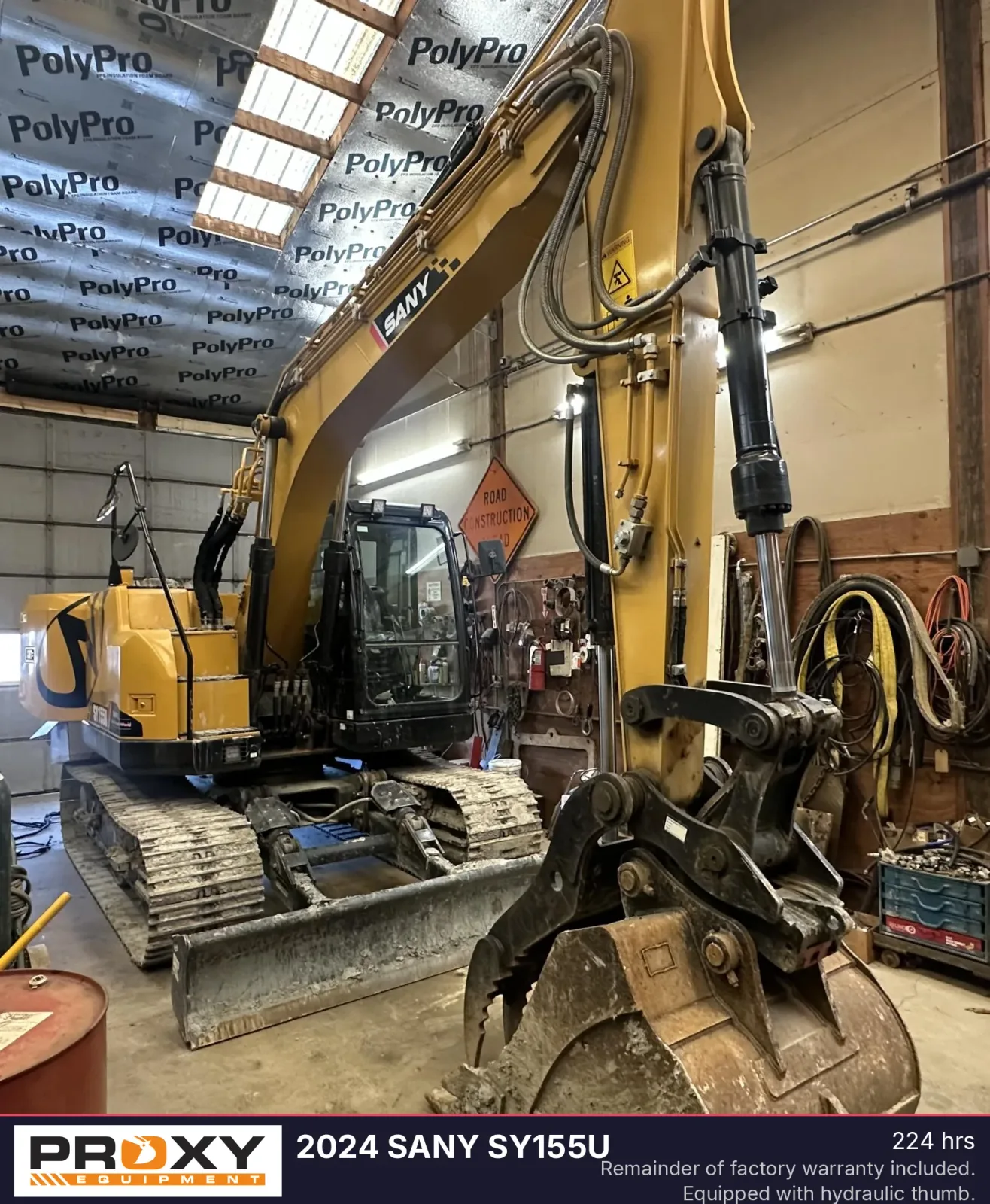

2024 SANY SY155U
View full size
1 / 31

2024 SANY SY155U

earth movingSANYAvailable
$173,900
Located in Ohio

Year

2024

Hours

224

Horsepower

103 HP

Operating Weight

35,274 lbs

Item # PE-42665Stock # DAZ0oBiJ846975

About this SY155U

The SANY SY155U is a powerful and efficient compact hydraulic excavator designed for maximum performance in confined spaces. Built with operator feedback, it offers exceptional comfort and efficiency, making it ideal for urban construction sites and other tight work environments. Its minimal tail swing and robust Isuzu engine ensure high productivity throughout the workday.

  • Compact design with minimal tail swing for tight spaces
  • Powered by a reliable and efficient Isuzu engine
  • High productivity with low energy consumption
  • Operator-friendly cab with excellent visibility and comfort
  • Easy to transport and can be street-ready with optional rubber pads
Low hours for a 2024 model.

Equipment & Attachments

  • Equipped with hydraulic thumb.

Additional Notes

  • Remainder of factory warranty included.
  • Still has plastic on the seat, indicating very light use.

Specifications

Horsepower103 HP
Operating Weight35,274 lbs
EngineISUZU AR-4JJ1XASC
EmissionsTier 4 Final / Stage V
Fuel Capacity58.12 gal

Performance

Bucket Capacity0.78 cu yd
Max Dig Depth17.9 ft
Max Reach27.35 ft
Dump Height22.17 ft
Hydraulic Flow66.57 GPM
Travel Speed3.29 mph
Ground Pressure5.9 PSI

Dimensions

Length26.9 ft
Width8.5 ft
Height9.3 ft
Tail Swing59 in
Track TypeSteel with optional rubber pads
Shoe Width23.62 in
